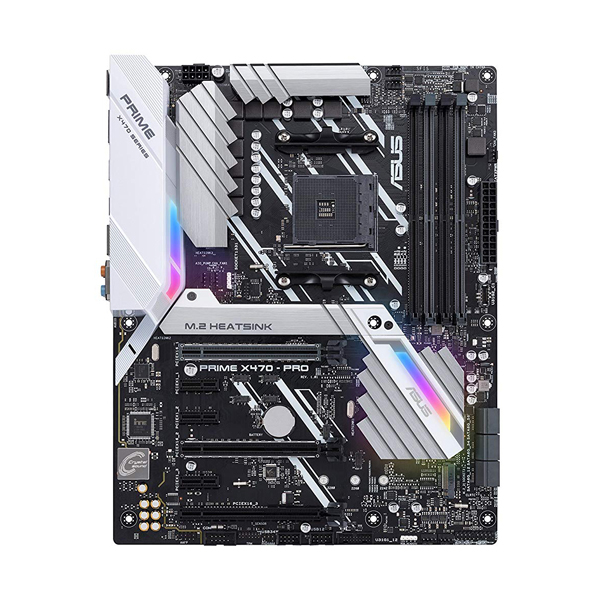

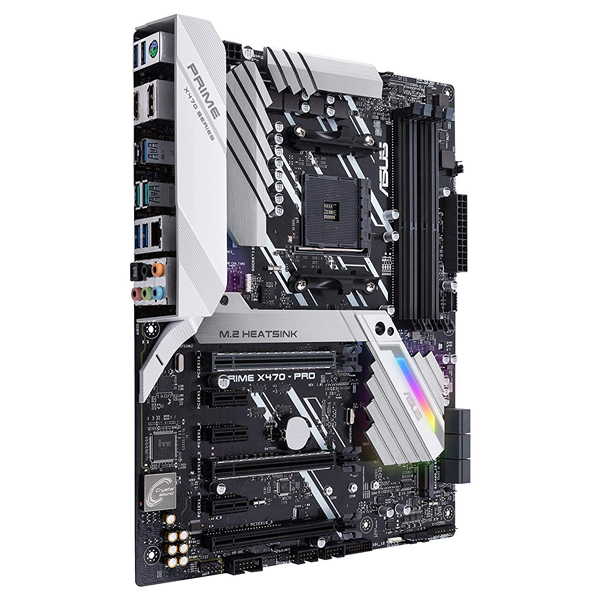

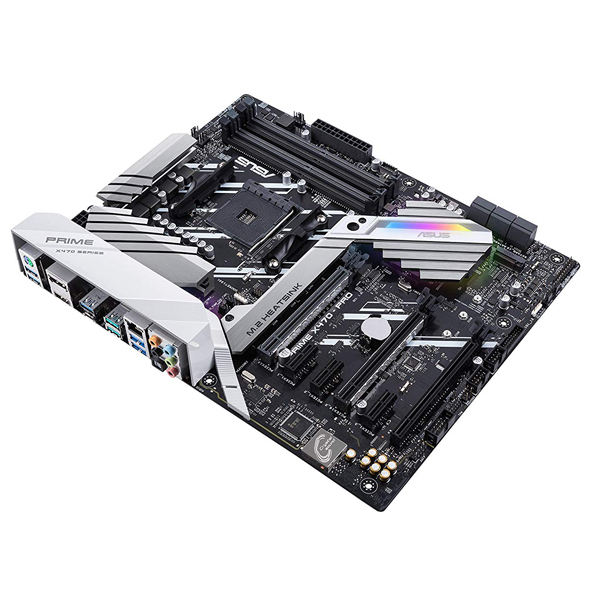

Mainboard ASUS PRIME X470-PRO

AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors Supports CPU up to 8 cores

AMD Ryzen™ 2nd Generation Processors 4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.

Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz Maximum shared memory of 2048 MB (for iGPU exclusively)

AMD X470

AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 2 x PCIe 3.0 x16 (x16 or dual x8) AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors 1 x PCIe 3.0 x16 (x8 mode)

1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue)Type-A, 1 x USB 3.1 Gen 1 USB Type-CTM, 5 x USB 3.1 Gen 1 1 x Optical S/PDIF out 5 x Audio jack(s)

2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x T_Sensor Connector 1 x USB 3.1 Gen 2 front panel connector

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A) AMD X470 chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) AMD X470 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, Type-A + USB Type-CTM, 2 at mid-board) AMD X470 chipset : 4 x USB 2.0 port(s) (4 at mid-board) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue, Type-A)

Intel® I211-AT

Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Front panel audio connector (AAFP) Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - EMI protection cover to prevent electrical noise to affect the amplifier quality

ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

36 tháng
