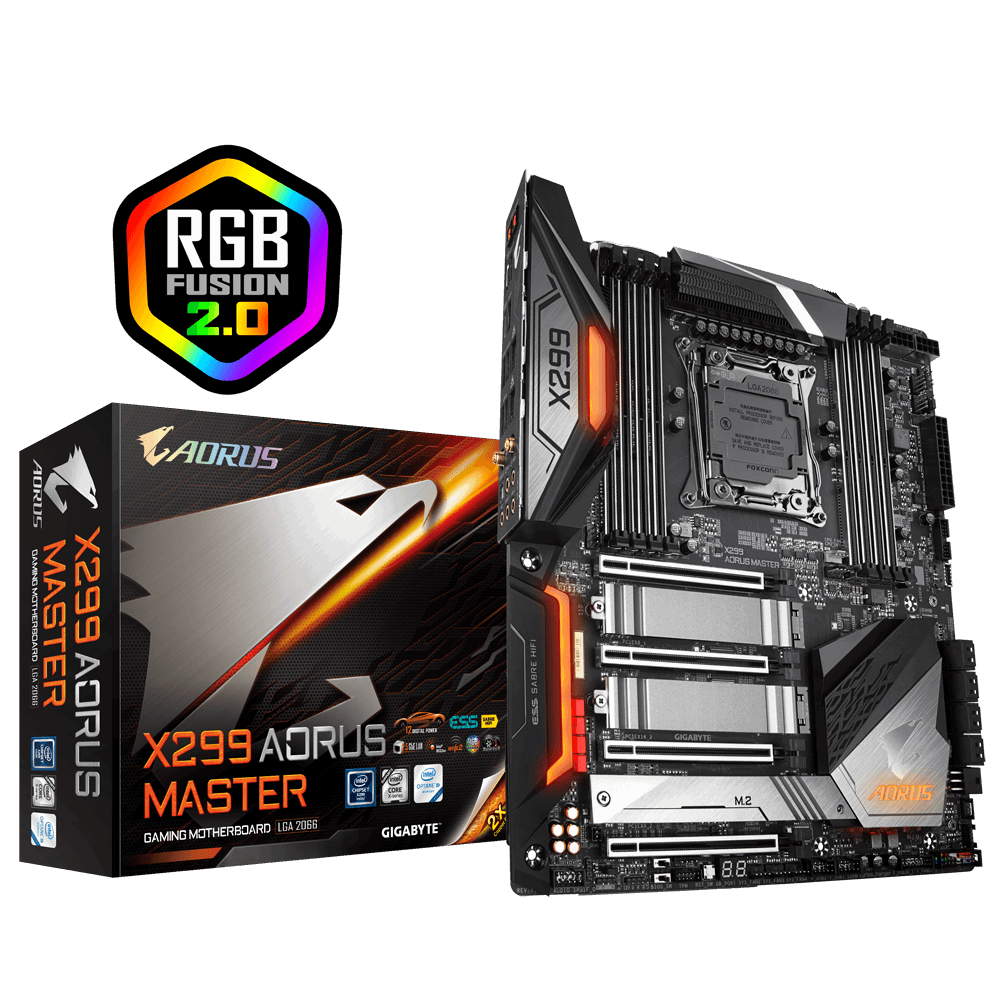

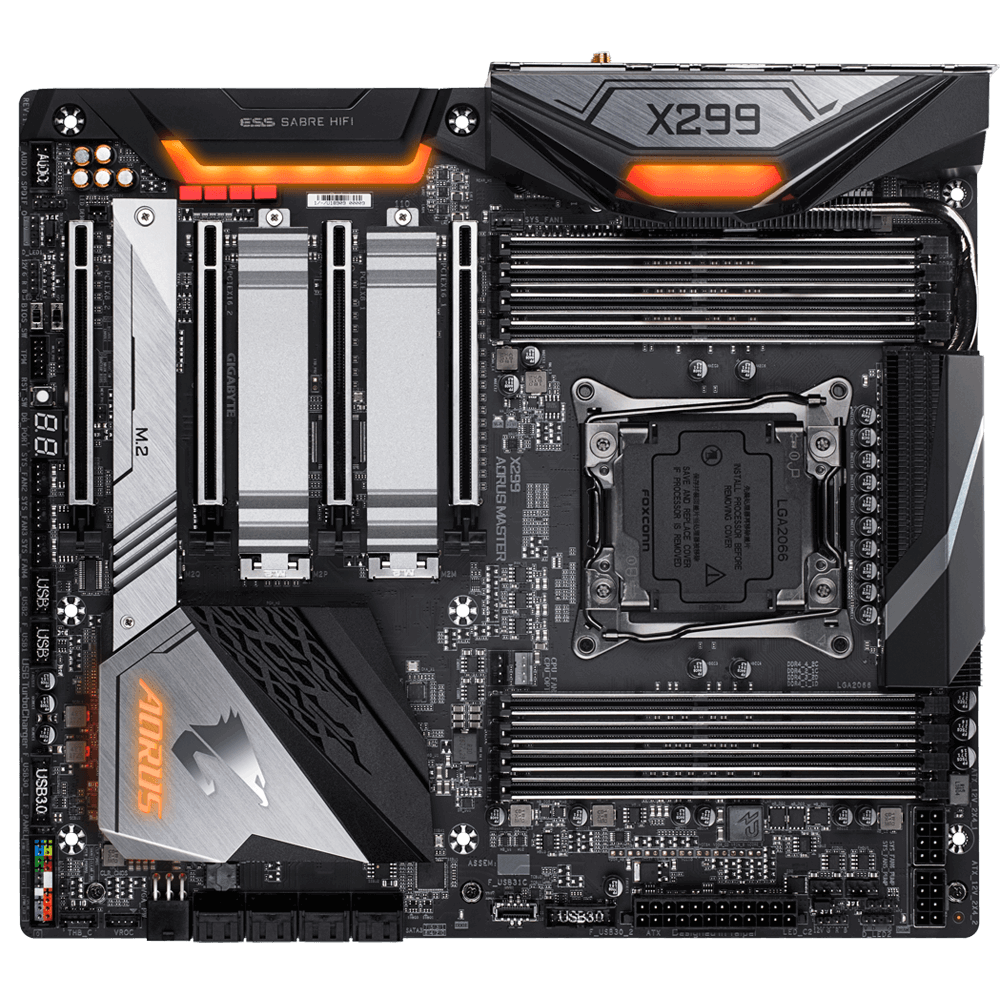

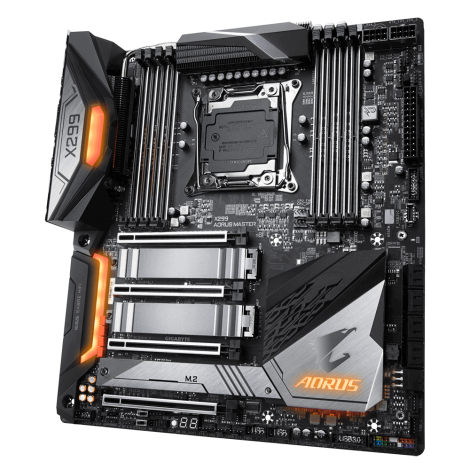

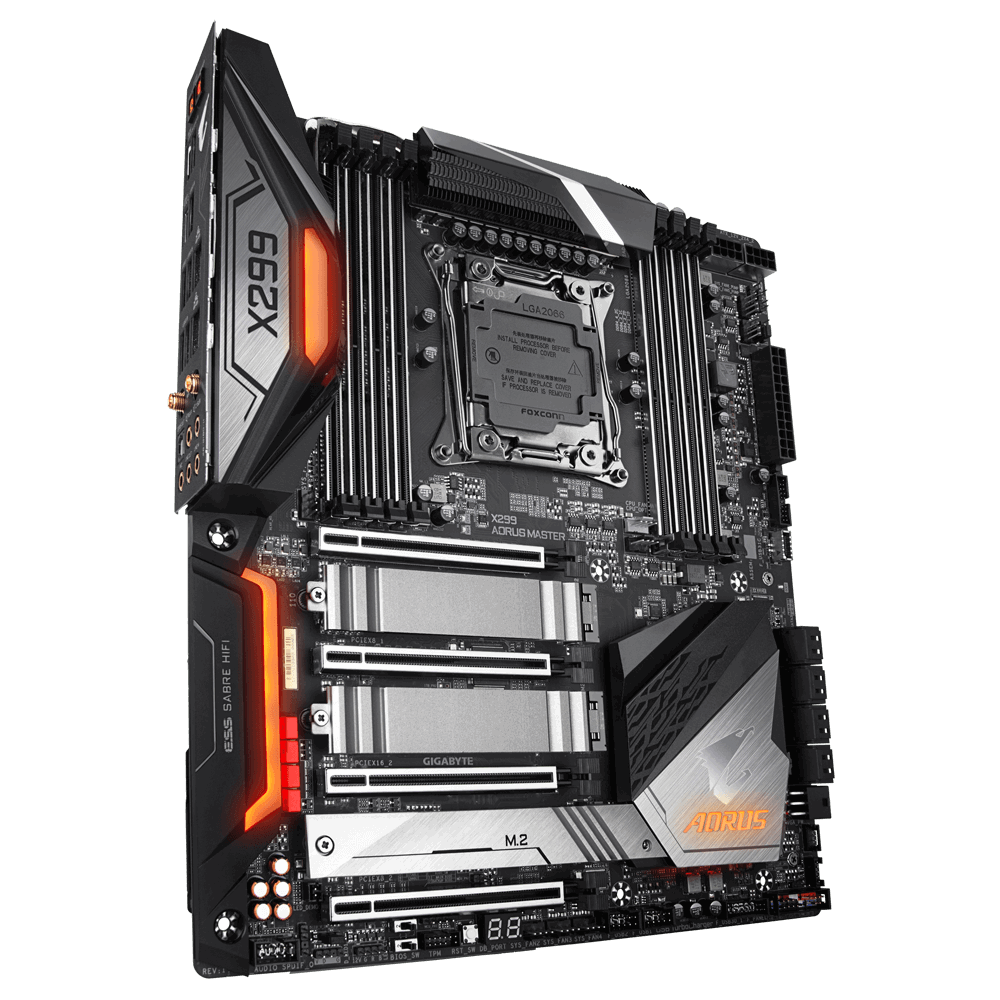

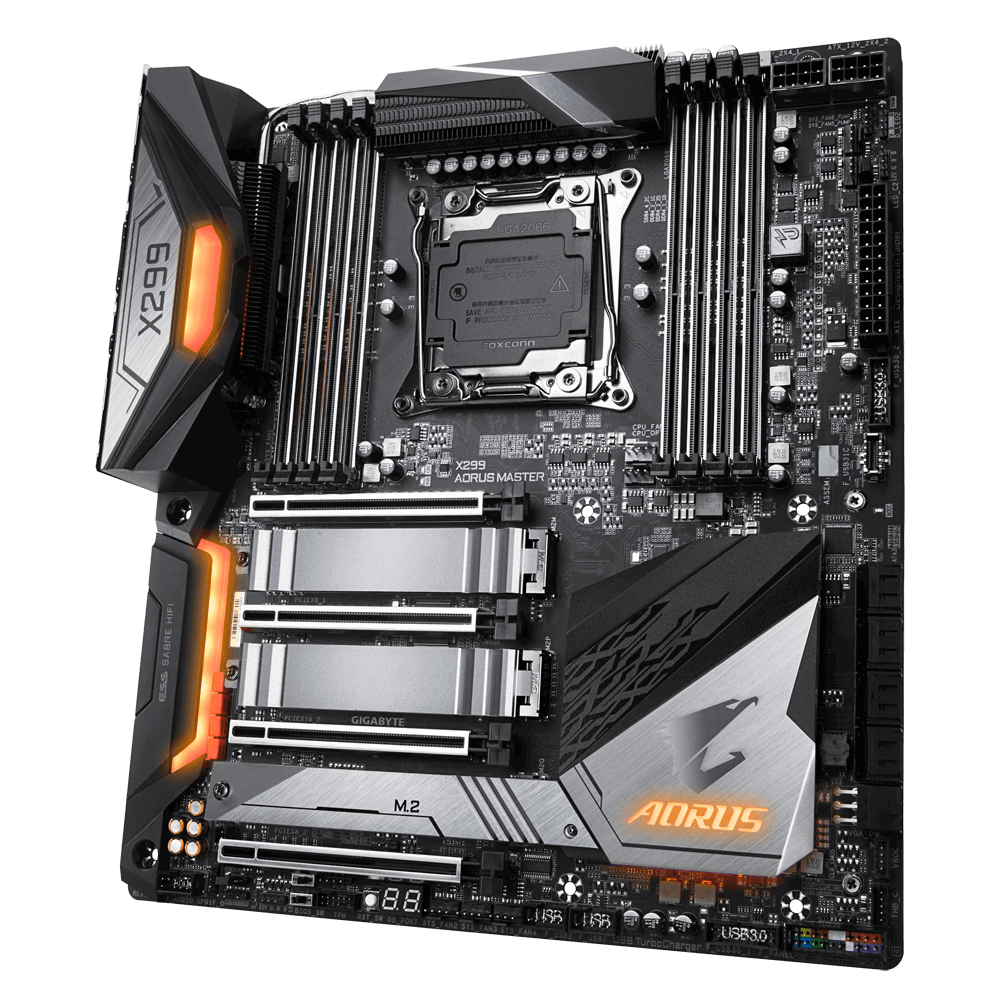

Mainboard Gigabyte X299 AORUS MASTER

  • : tnm1434
  • Ngừng kinh doanh
  • Chipset: Intel® X299 Express Chipset
  • CPU hỗ trợ: Support for Intel® Core™ X series 44-lane/28-lane processors (6-core or above) in the LGA2066 package
  • Socket: LGA2066
Thông số kỹ thuật
Loại Ram :
8 x DDR4 DIMM sockets supporting up to 128 GB of system memory, Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Chipset :
Intel® X299 Express Chipset
Khe cắm mở rộng :
2 x PCI Express x16 slots, running at x16, 2 x PCI Express x16 slots, running at x8
Giao tiếp :
2 x USB Type-C™ ports on the back panel, with USB 3.1 Gen 2 support. 1 x USB Type-C™ port with USB 3.1 Gen 2 support. 4 x USB 3.1 Gen 1 ports
Bộ nhớ :
8 x DDR4 DIMM sockets supporting up to 128 GB of system memory, Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

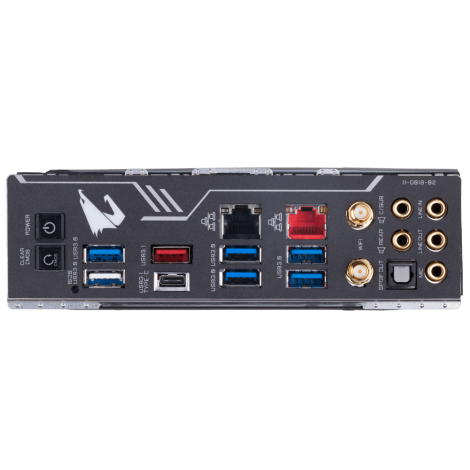

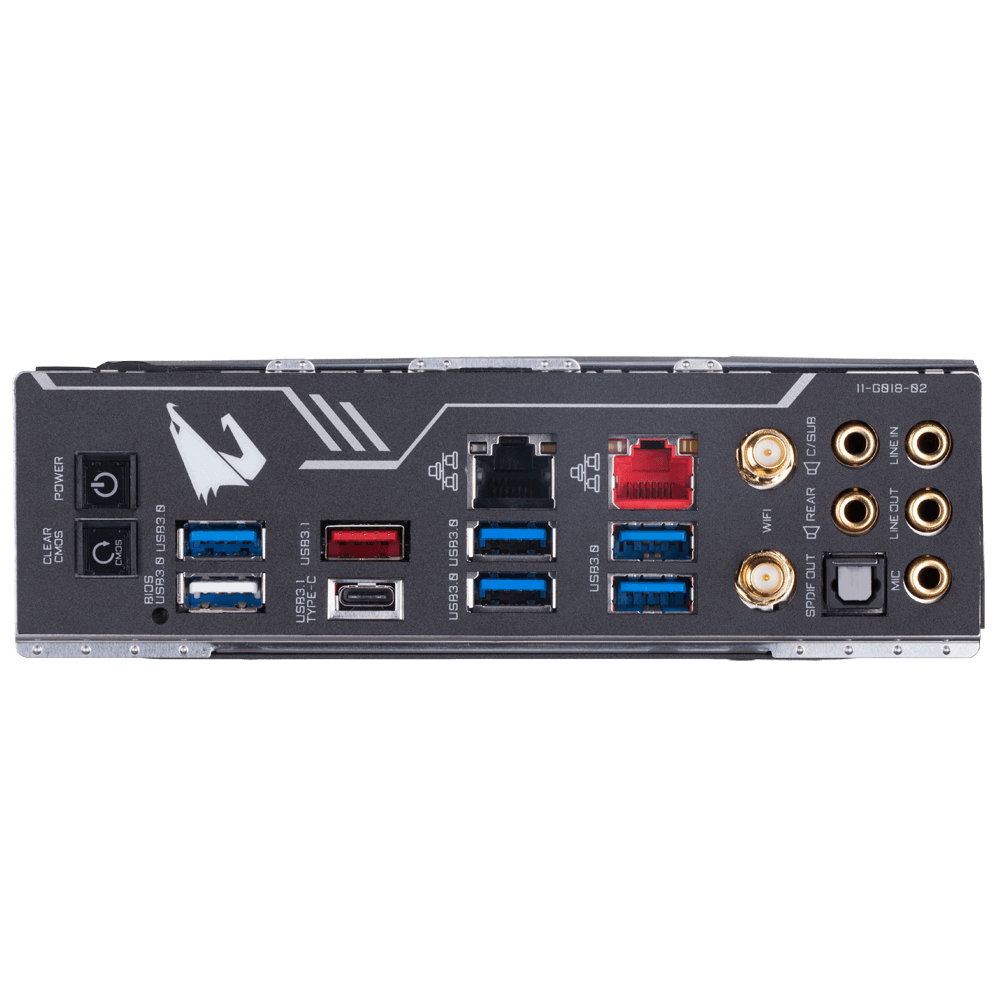

Cổng I/O phía sau :

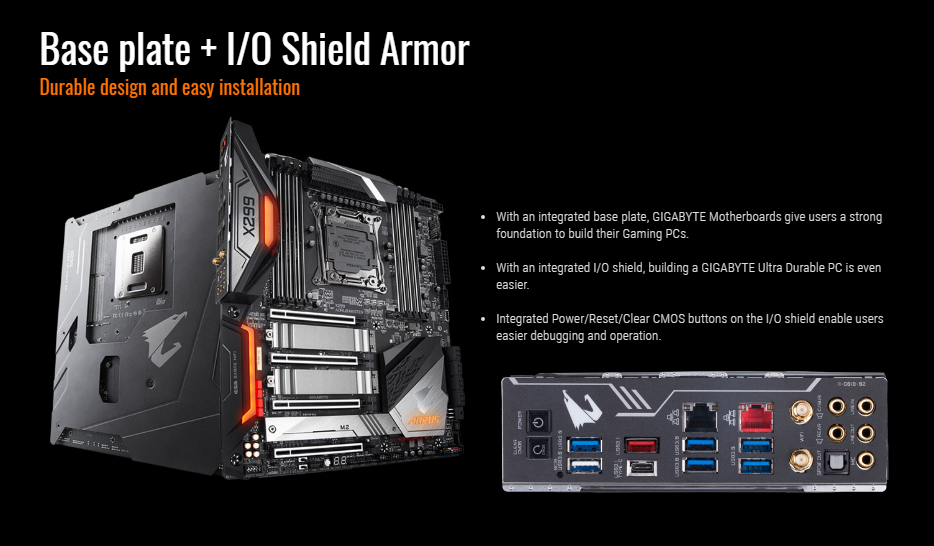

1 x power button 1 x Clear CMOS button 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 6 x USB 3.1 Gen 1 ports 2 x RJ-45 ports 2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 5 x audio jacks
Cổng I/O ở trong :
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x VGA_PW power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x addressable LED strip power select jumpers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x Intel® VROC Upgrade Key header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C™ header, with USB 3.1 Gen 2 support 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x reset button 1 x Clear CMOS jumper 2 x temperature sensor headers 2 x BIOS switches
Âm thanh :
Realtek® ALC1220-VB codec ESS SABRE9218 DAC chip * The front panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Kích thước :
E-ATX Form Factor; 30.5cm x 26.9cm
Bảo hành :
36 tháng
