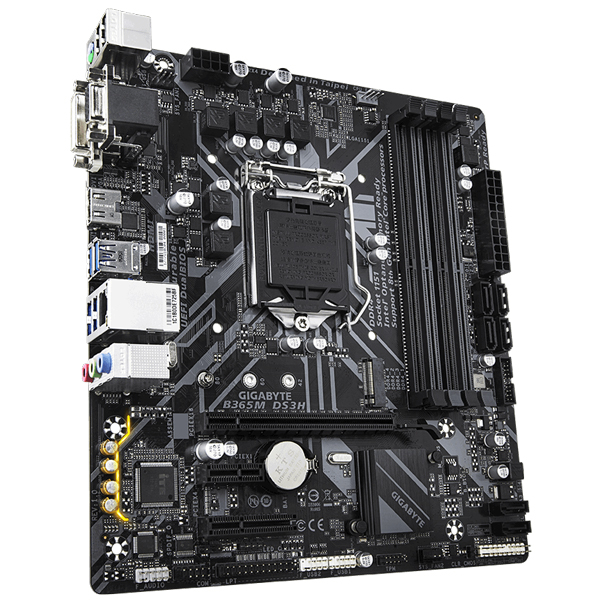

Name: Mainboard Gigabyte B365M-DS3H
Brand: GIGABYTE
SKU: tnm1720
Availability: InStock
Rating: 5 (1 reviews)

Mã Sản phẩm: tnm1720

Liên hệ

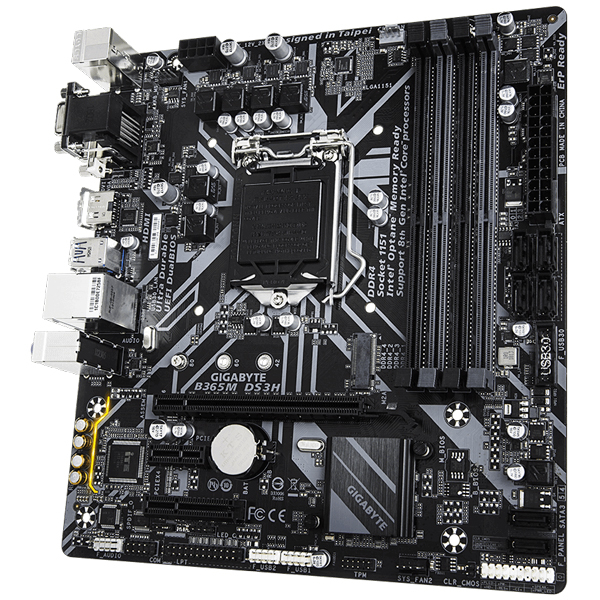

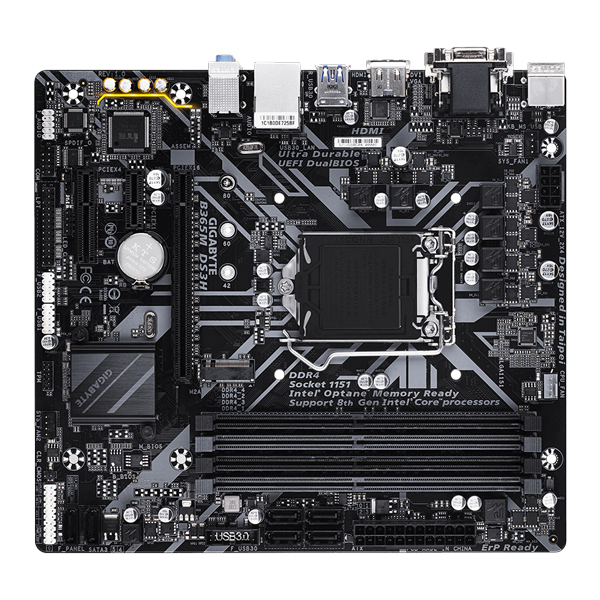

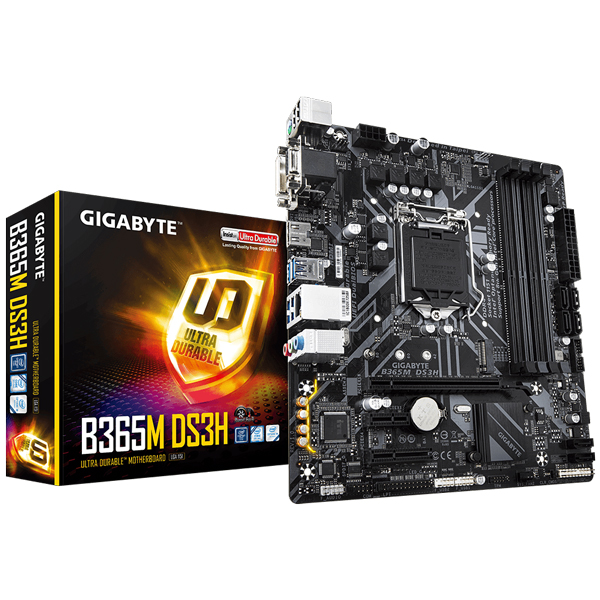

Mainboard Gigabyte B365M-DS3H

Ngày đăng: 03-05-2019

Ngày sửa cuối: 04-03-2021

Thương hiệu: GIGABYTE

Mục	Mô Tả Chi Tiết
CPU	Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x4 slot 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Chipset	Intel® B365 Express Chipset
Giao tiếp	Chipset: 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Kết nối mạng LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanh	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Hệ điều hành hỗ trợ	Support for Windows 10 64-bit

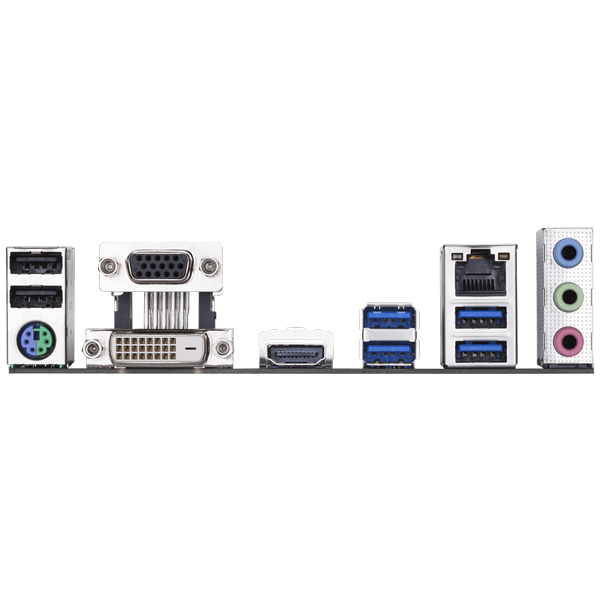

Cổng I/O phía sau	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Cổng I/O ở trong	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
Kích thước	Micro ATX Form Factor; 22.6cm x 20.5cm
Bảo hành	36 tháng
