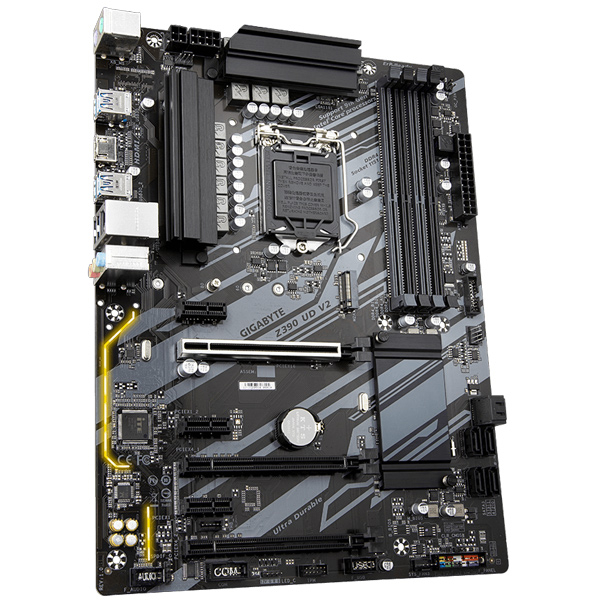

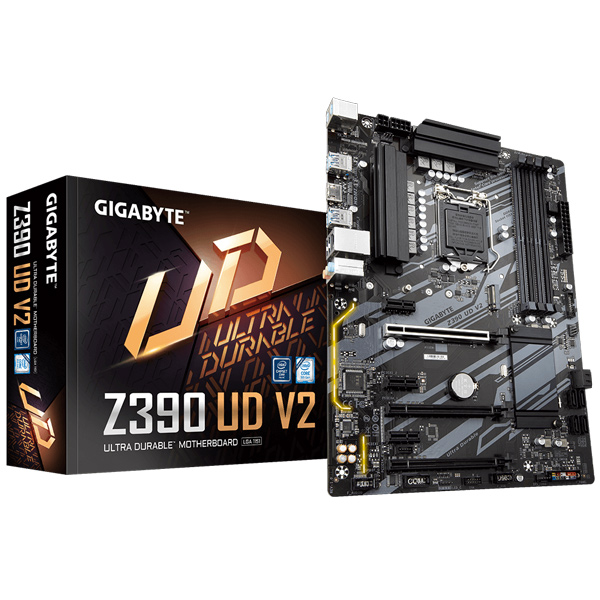

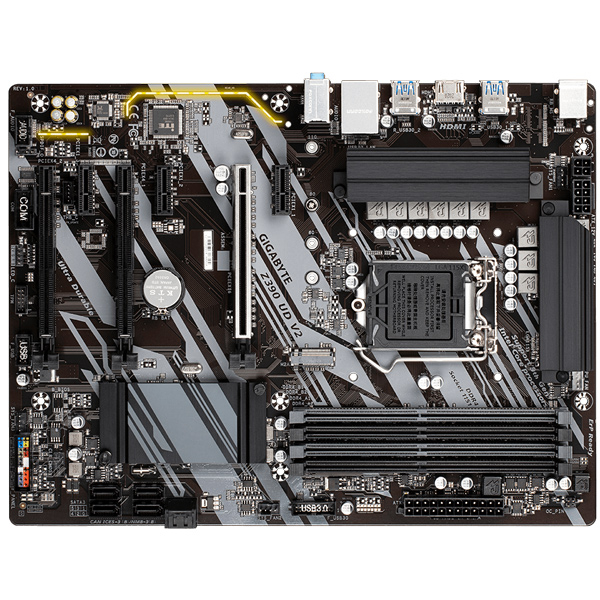

Mainboard Gigabyte Z390 UD V2

  • : tnm0781
  • Ngừng kinh doanh
  • Chipset: Intel® Z390 Express Chipset
  • CPU hỗ trợ: Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
  • Socket: 1151
Thông số kỹ thuật
CPU :
Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
RAM :
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Loại Ram :
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Chipset :
Intel® Z390 Express Chipset
Khe cắm mở rộng :
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) 3 x PCI Express x1 slots
Giao tiếp :
8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports available through the internal USB header
Bộ nhớ :
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

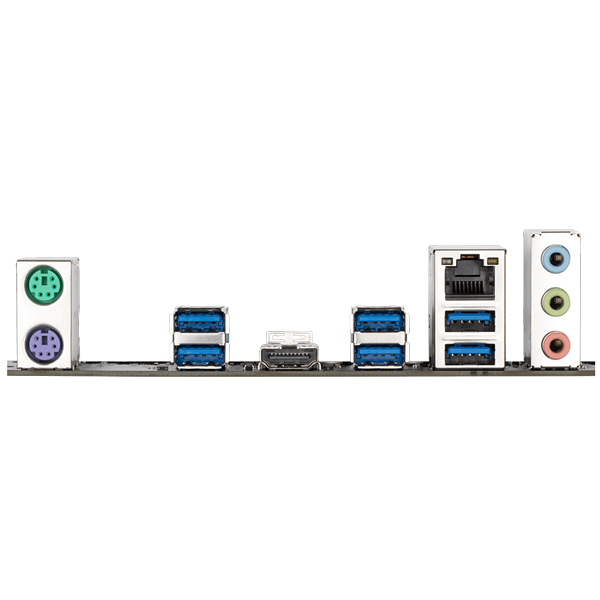

Cổng I/O phía sau :
1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x HDMI port 6 x USB 3.1 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
Cổng I/O ở trong :
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper
Kết nối mạng LAN :
Realtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanh :
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Kích thước :
ATX Form Factor; 30.5cm x 23.0cm
Bảo hành :
36 tháng
Mô tả tính năng

Bo mạch chủ GIGABYTE sử dụng IC có mức kháng ESD cao gấp 3 lần so với IC truyền thống. Điều này giúp bảo vệ tốt hơn bo mạch chủ và các thành phần của nó trước những thiệt hại tiềm ẩn do tĩnh điện gây ra. Bo mạch chủ GIGABYTE cũng có các vi mạch chống tăng áp đặc biệt giúp bảo vệ bo mạch chủ và PC của bạn khỏi bất kỳ sự phân phối điện tăng đột biến nào có thể xảy ra, giúp đảm bảo rằng PC của bạn được trang bị để đối phó với mọi khả năng cung cấp điện không đều và không nhất quán.

Với Smart Fan 5, người dùng có thể đảm bảo rằng PC chơi game của họ có thể duy trì hiệu suất trong khi vẫn mát. Smart Fan 5 cho phép người dùng hoán đổi các đầu quạt để phản chiếu các cảm biến nhiệt khác nhau tại các vị trí khác nhau trên bo mạch chủ. Không chỉ vậy, với Smart Fan 5 đầu quạt lai hỗ trợ cả quạt chế độ PWM và Voltage đã được giới thiệu để làm cho bo mạch chủ thân thiện hơn với khả năng làm mát bằng chất lỏng.

Đánh giá
  • Bình chọn sản phẩm này:
Cuong Nguyen
Hàng chuẩn shop hổ trợ nhanh gọn:)
Thành Nhân

Dạ, cảm ơn những phản hồi của Anh/chị về sản phẩm ạ!

Trân trọng!
