Mã Sản phẩm: tnm4845

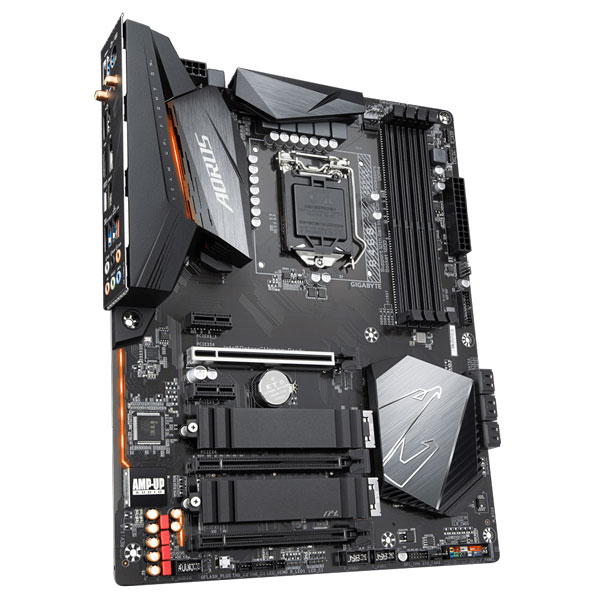

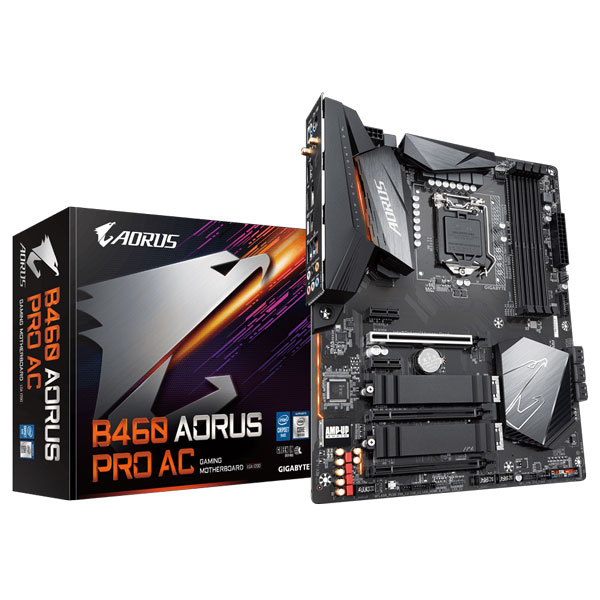

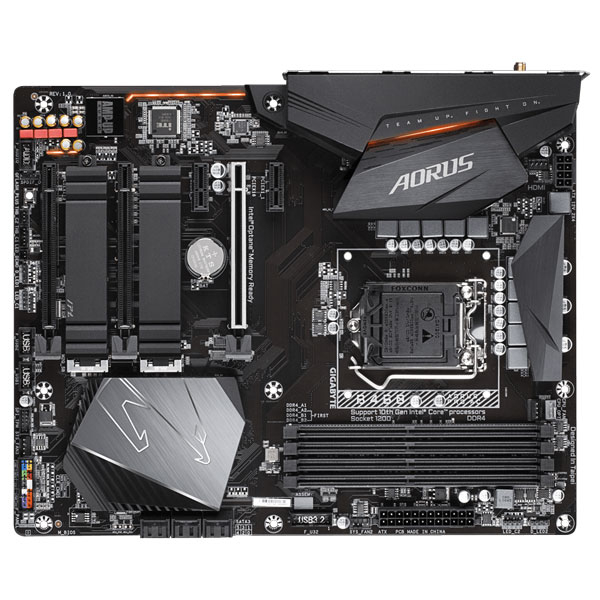

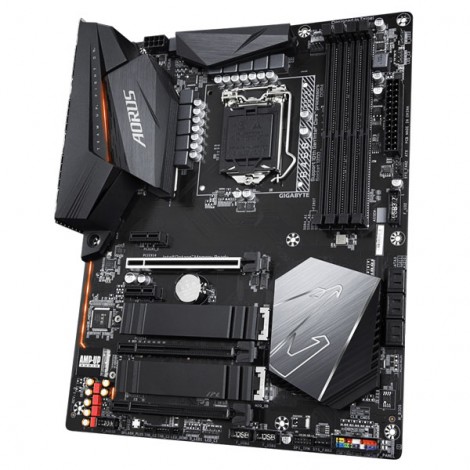

Mainboard GIGABYTE B460 AORUS PRO AC hỗ trợ Bộ xử lý dòng Intel ® Core ™ thế hệ thứ 10, Tối ưu hóa phí cổng để giảm thiểu tổn thất chuyển đổi. Nhiệt độ thấp hơn, kích thước nhỏ hơn, đặc tính nhiệt tốt hơn.Với các thành phần chất lượng tốt nhất và khả năng thiết kế R & D của GIGABYTE, B460 AORUS là một sản phẩm tuyệt vời cho game thủ
Với tấm nền tích hợp, Bo mạch chủ GIGABYTE mang đến cho người dùng một nền tảng vững chắc để xây dựng PC chơi game của họ. Với tấm chắn I / O tích hợp, việc xây dựng một chiếc máy tính siêu bền GIGABYTE thậm chí còn dễ dàng hơn.
| Mục | Mô Tả Chi Tiết |
|---|---|
| CPU | Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU (Please refer to "CPU Support List" for more information.) |
| RAM | Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.) |
| Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector. 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Chipset | Intel® B460 Express Chipset |
| Wifi | Intel® Wi-Fi 9260 Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band |
| Giao tiếp | Chipset+ASMedia® USB 3.2 Gen 2 Controller: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel |
| Kích thước | ATX Form Factor; 30.5cm x 24.4cm |
| Kết nối mạng LAN | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Âm thanh | Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Hệ điều hành hỗ trợ | Support for Windows 10 64-bit |
| Bluetooth | BLUETOOTH 5.0 |
| Socket | 1200 |

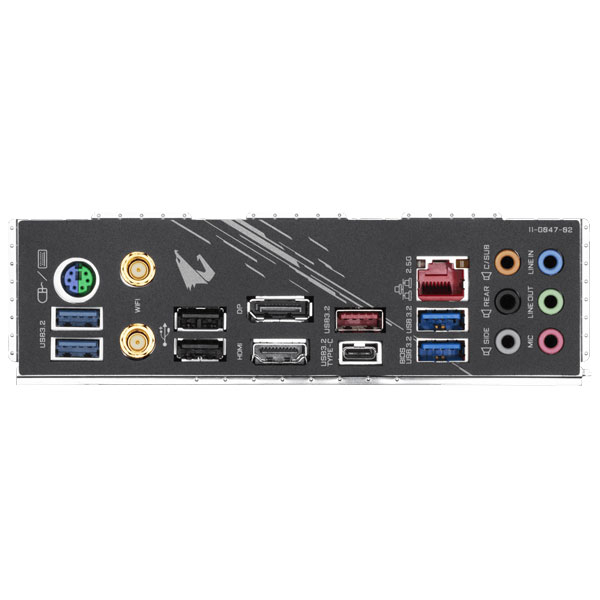

| Cổng I/O phía sau | Chipset: 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
| Cổng I/O ở trong | Chipset: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt™ add-in card connectors 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Bảo hành | 36 tháng |
