Mainboard Gigabyte B560M AORUS PRO AX, tháng 04-2024

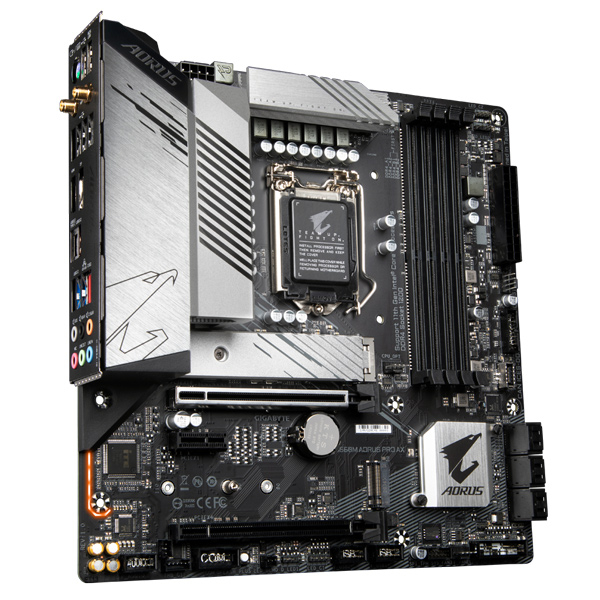

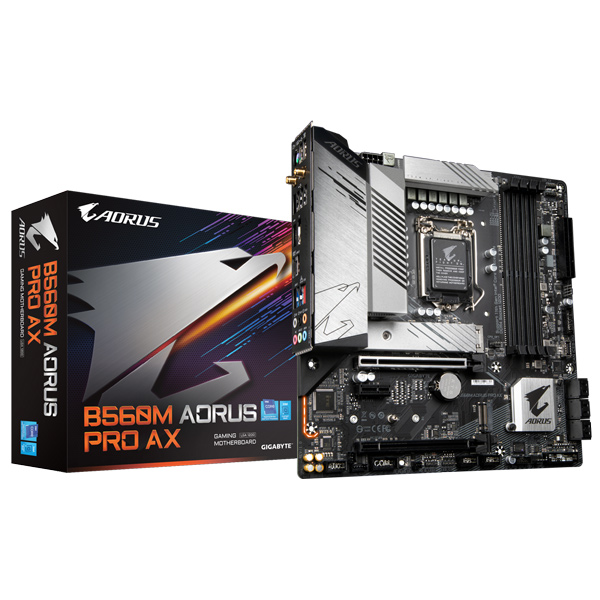

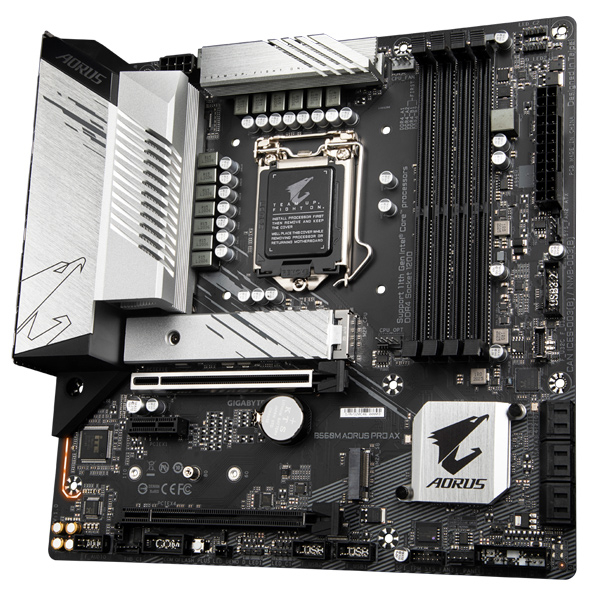

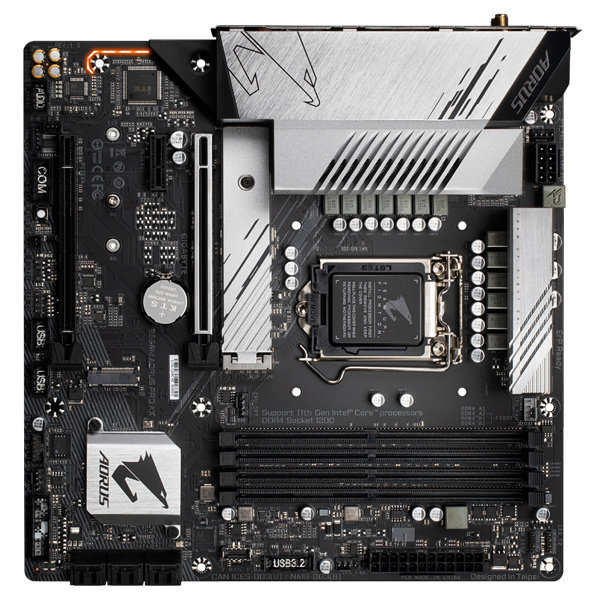

Mainboard Gigabyte B560M AORUS PRO AX

Mã sản phẩm : tnm7238
Người dùng đánh giá:

Ngừng kinh doanh

Chipset: Intel® B560 Express Chipset
CPU hỗ trợ: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Socket: LGA1200
Lưu trữ: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready

Thông số kỹ thuật
Mô tả tính năng
Đánh giá
Sản phẩm liên quan

Thông số kỹ thuật

RAM	:	11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset	:	Intel® B560 Express Chipset
Socket	:	LGA1200
Cổng xuất hình	:	1 x DisplayPort, 1 x HDMI port
Wifi	:	Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Kết nối mạng LAN	:	Intel®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Âm thanh	:	Realtek® Audio codec High Definition Audio 2/4/5.1/7.1-channel
Giao Tiếp VGA	:	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

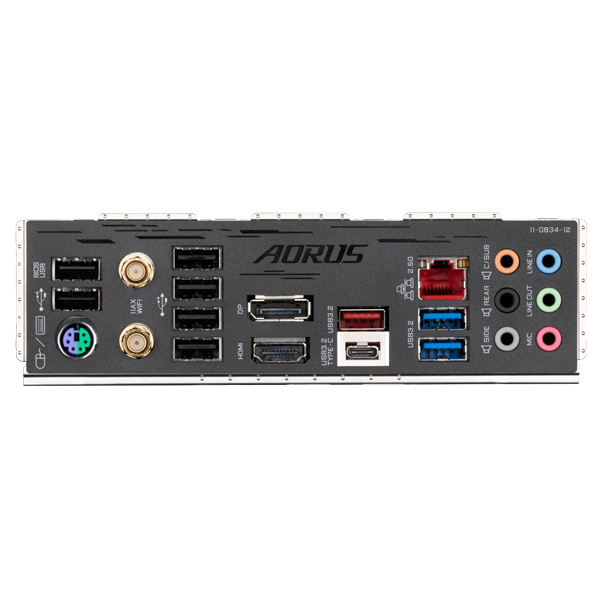

Số cổng USB	:	Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen2x2 support 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen1 ports on the back panel 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header 2 x USB 3.2 Gen1 ports available through the internal USB header Chipset+ 2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Hệ điều hành hỗ trợ	:	Support for Windows 10 64-bit
Kích thước	:	Micro ATX Form Factor; 24.4cm x 24.4cm
Bảo hành	:	36 tháng
