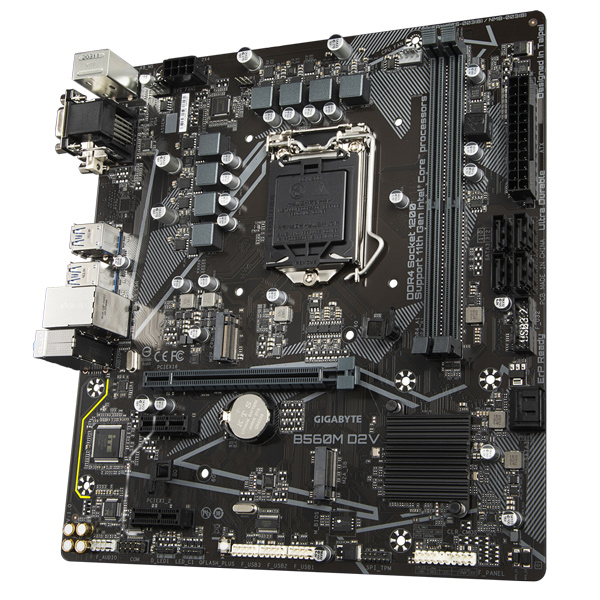

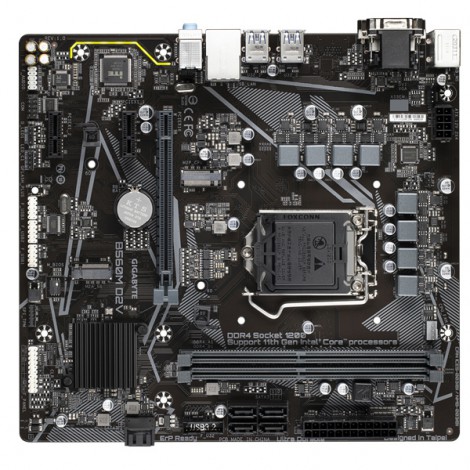

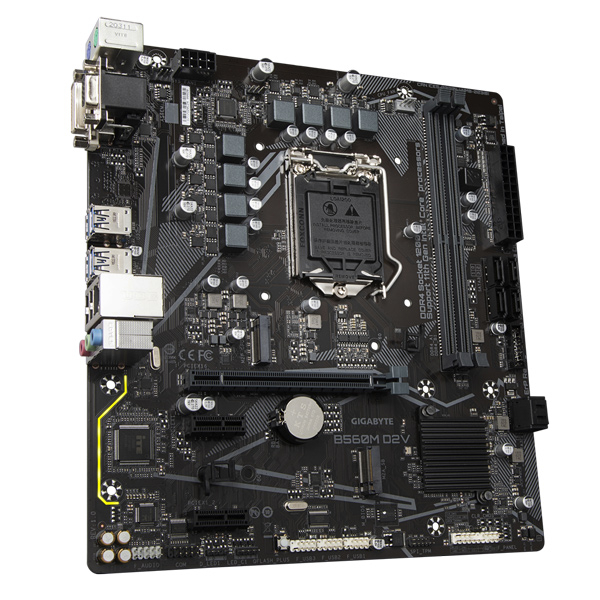

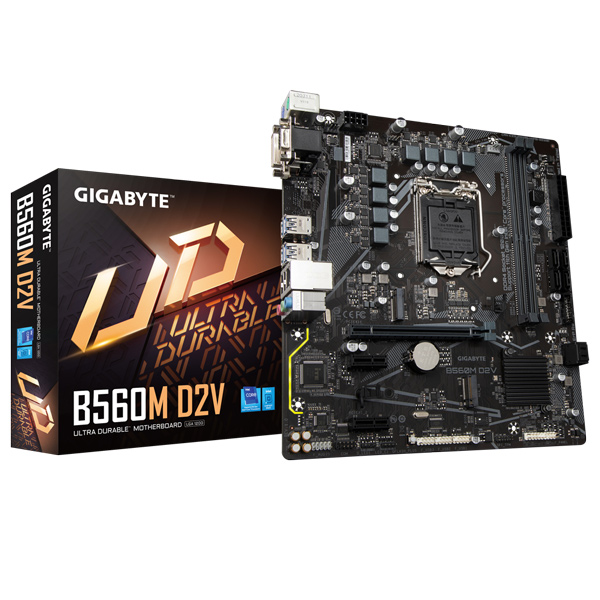

Mainboard GIGABYTE B560M D2V

  • : tnm7366
  • Ngừng kinh doanh
  • Chipset: Intel® B560 Express Chipset
  • CPU hỗ trợ: LGA1200 package: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
  • Socket: LGA1200
  • Lưu trữ: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Thông số kỹ thuật
RAM :
11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset :
Intel® B560 Express Chipset
Socket :
LGA1200
Cổng xuất hình :

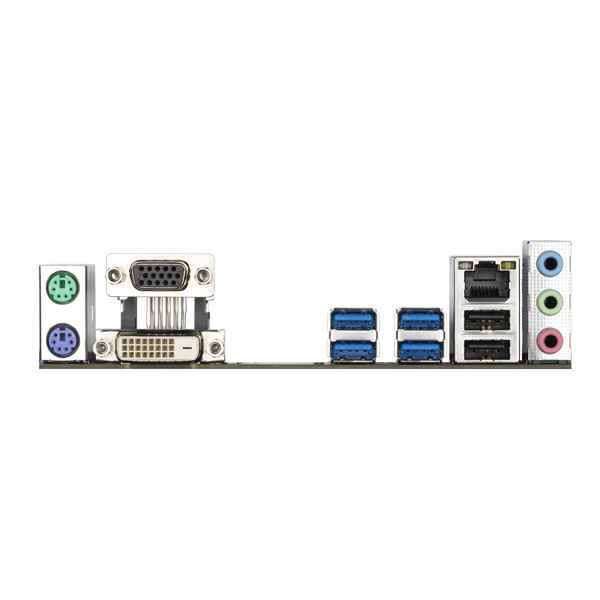

1 x D-Sub, 1 x DVI-D
Kết nối mạng LAN :
Realtek® GbE LAN chip (1 Gbit/100 Mbit)
Âm thanh :
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channe
Giao Tiếp VGA :
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2) (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Số cổng USB :
Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Hệ điều hành hỗ trợ :
Support for Windows 10 64-bit
Kích thước :
Micro ATX Form Factor; 24.4cm x 22.5cm
Bảo hành :
36 tháng
Mô tả tính năng

RGB Fusion 2.0 cung cấp cho người dùng tùy chọn điều khiển dải đèn RGB trên bo mạch và RGB / đèn LED có địa chỉ bên ngoài cho PC của họ. Đã có đầy đủ các màu sắc và kiểu mẫu, RGB Fusion 2.0 trên Bo mạch chủ B560 Series hiện được nâng cấp với hỗ trợ đèn LED có thể định địa chỉ. Với dải đèn LED định địa chỉ bên ngoài, trong đó mỗi đèn LED có thể định địa chỉ kỹ thuật số, người dùng có thể trải nghiệm nhiều mẫu, kiểu dáng và ánh sáng hơn nữa.

Với Bo mạch chủ B560 sẽ hỗ trợ dải đèn LED địa chỉ 5v hoặc 12v và lên đến 300 đèn LED. RGB Fusion 2.0 với đèn LED có thể định địa chỉ đi kèm với các mẫu mới và các cài đặt tốc độ khác nhau cùng với nhiều hơn thế nữa.

Bo mạch chủ B560 có đầu nối nguồn ATX 12V 8pin được mạ chắc chắn để cung cấp nguồn điện ổn định trong quá trình CPU quá tải.
