Mã Sản phẩm: tnm4848

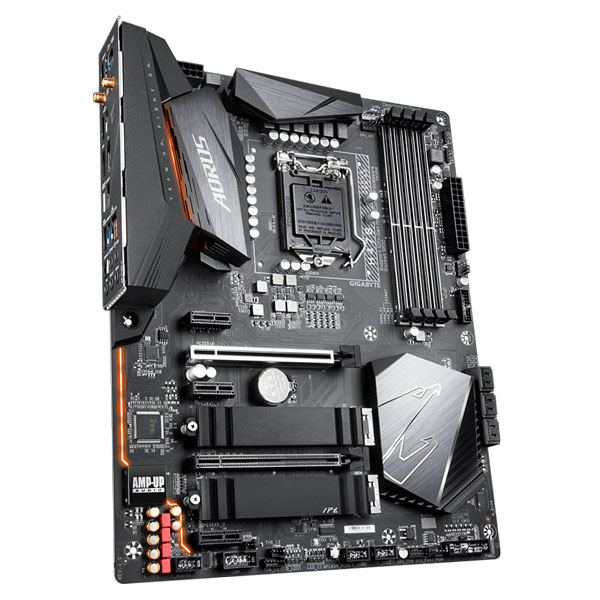

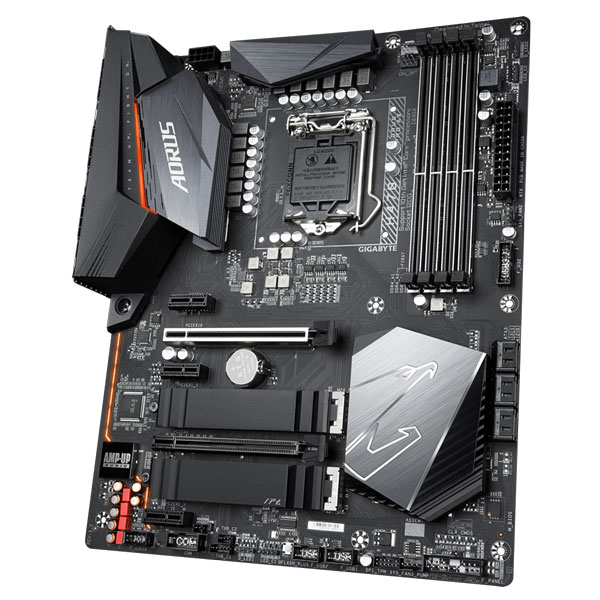

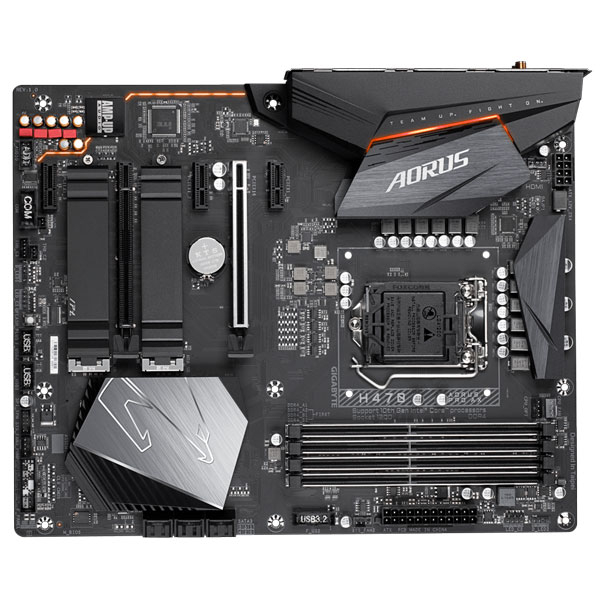

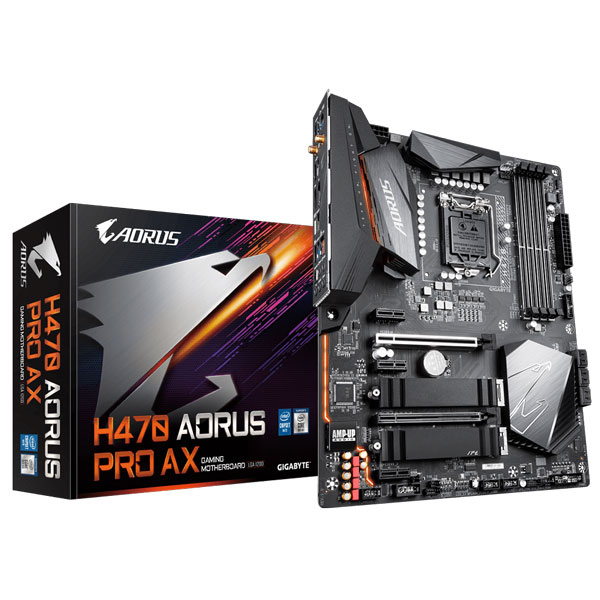

Mainboard GIGABYTE H470 AORUS PRO AX hỗ trợ Bộ xử lý dòng Intel ® Core ™ thế hệ thứ 10, GIGABYTE cung cấp giải pháp nhiệt cho các thiết bị SSD M.2. Bộ bảo vệ nhiệt M.2 ngăn chặn điều tiết và tắc nghẽn từ SSD M.2 tốc độ cao
H470 AORUS PRO AX cung cấp tất cả kết nối mạng, lưu trữ và kết nối WIFI thế hệ tiếp theo để giúp bạn luôn cập nhật tốc độ.
Việc sử dụng LAN 2.5G cung cấp kết nối mạng lên tới 2,5 GbE, với tốc độ truyền nhanh hơn ít nhất 2 lần so với mạng 1GbE chung, được thiết kế hoàn hảo cho các game thủ có trải nghiệm chơi trò chơi trực tuyến tuyệt đỉnh.Hỗ trợ Multi-Gig (10/100/1000 / 2500Mbps) ethernet RJ-45
| Mục | Mô Tả Chi Tiết |
|---|---|
| CPU | Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU |
| RAM | Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.) |
| Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Chipset | Intel® H470 Express Chipset |
| Wifi | Intel® Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band |
| Giao tiếp | Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Kích thước | ATX Form Factor; 30.5cm x 24.4cm |
| Kết nối mạng LAN | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Âm thanh | Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Hệ điều hành hỗ trợ | Support for Windows 10 64-bit |
| Bluetooth | BLUETOOTH 5.1 |
| Socket | 1200 |

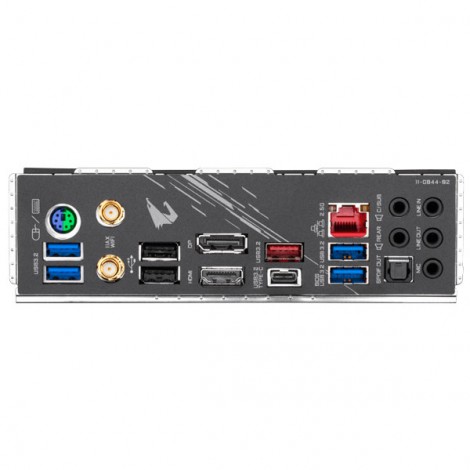

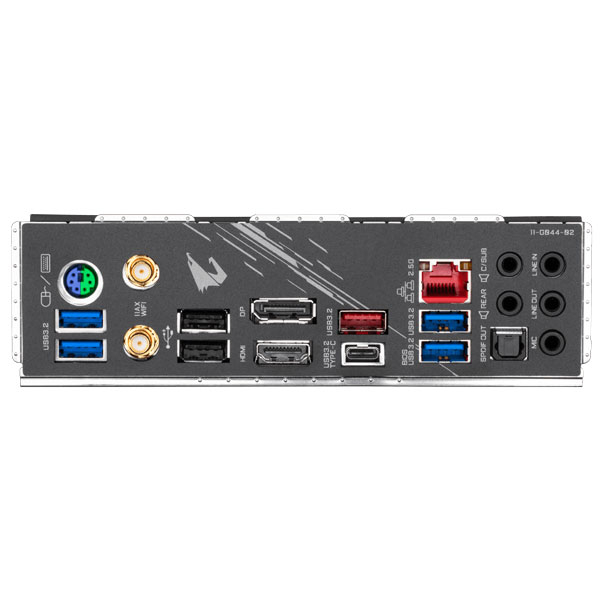

| Cổng I/O phía sau | 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Cổng I/O ở trong | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x Q-Flash Plus button 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt™ add-in card connectors 1 x serial port header 1 x Clear CMOS jumper |
| Bảo hành | 36 tháng |
