Mã Sản phẩm: tnm7251
| Mục | Mô Tả Chi Tiết |
|---|---|
| RAM | Intel® Xeon® W-1290/W-1270 series processors/Intel® Core™ i9/i7 processors: Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Intel® Xeon® W-1250 series processors/Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules * To support ECC, you must install an Intel® Xeon® processor. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Chipset | Intel® W480 Express Chipset |
| Kích thước | ATX Form Factor; 30.5cm x 24.4cm |
| Kết nối mạng LAN | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN2) Intel® GbE LAN chip (1 Gbit/100 Mbit)(LAN1) |
| Âm thanh | Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Hệ điều hành hỗ trợ | Support for Windows 10 64-bit |
| Socket | LGA1200 |
| Bảo hành | 36 tháng |
| Cổng xuất hình | 1 x HDMI port, 2 x DisplayPorts |
| Giao Tiếp VGA | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) * The PCIEX4_2 slot shares bandwidth with the M2M_SB connector. The PCIEX4_2 slot becomes unavailable when a device is installed in the M2M_SB connector. 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) |

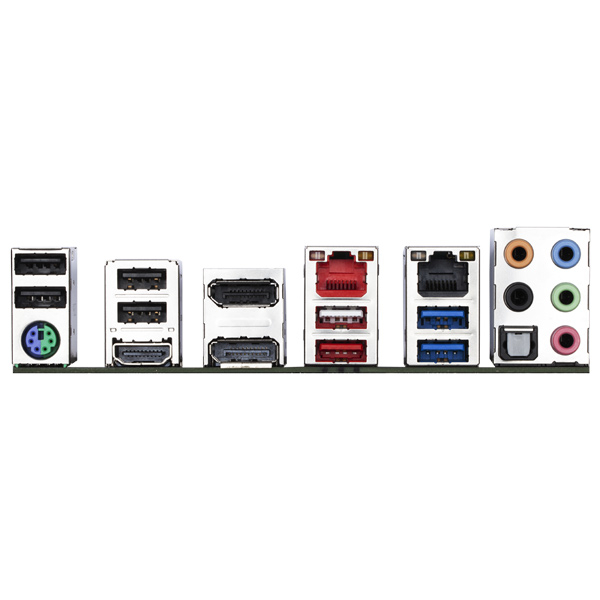

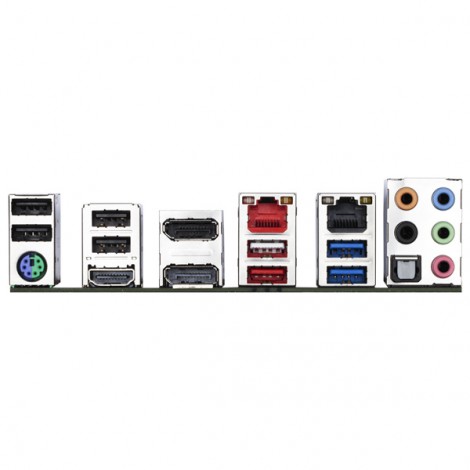

| Số cổng USB | Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 3 x USB 3.2 Gen 1 ports on the back panel 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+1 USB 3.2 Hub: 3 x USB 3.2 Gen 1 ports (1 port onboard, 2 ports available through the internal USB header) |
