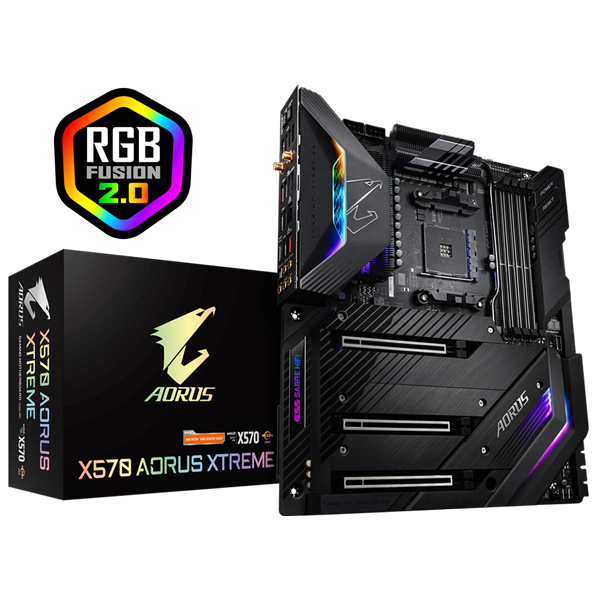

Mainboard Gigabyte X570 AORUS XTREME

  • : tnm3116
  • Ngừng kinh doanh
  • Giao tiếp: Integrated in the CPU: 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
  • Chipset: AMD X570
  • CPU hỗ trợ: AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
Thông số kỹ thuật
CPU :
AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
RAM :
3rd Generation AMD Ryzen™ processors: Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Loại Ram :
3rd Generation AMD Ryzen™ processors: Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset :
AMD X570
Khe cắm mở rộng :
Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 * For 3rd Generation AMD Ryzen™ processors only.
Giao tiếp :
Integrated in the CPU: 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
Cổng I/O phía sau :
1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) * For 3rd Generation AMD Ryzen™ processors only. 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks
Cổng I/O ở trong :
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches Voltage Measurement Points
Kết nối mạng LAN :
1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)
Âm thanh :
Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS SABRE9218 DAC chip High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Hệ điều hành hỗ trợ :
Support for Windows 10 64-bit
Kích thước :
E-ATX Form Factor; 30.5cm x 27.0cm
Bảo hành :
36 tháng
