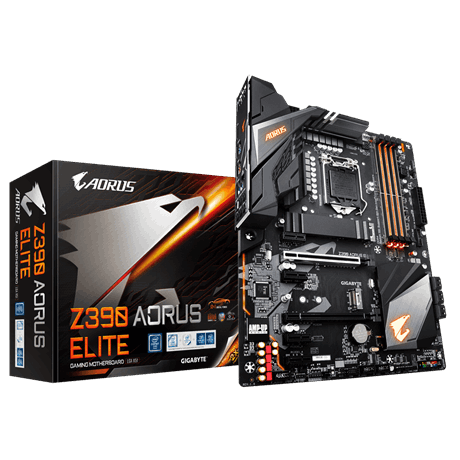

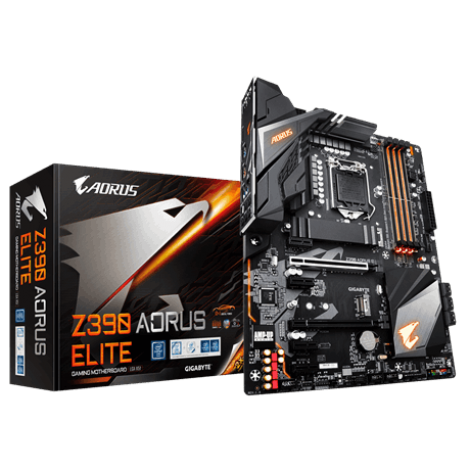

Mainboard Gigabyte Z390 AORUS ELITE (GM3)

  • : tnm0779
  • Ngừng kinh doanh
  • Chipset: Intel® Z390 Express Chipset
  • CPU hỗ trợ: Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
  • Socket: 1151
Thông số kỹ thuật
CPU :
Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
RAM :
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Loại Ram :
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Chipset :
Intel® Z390 Express Chipset
Khe cắm mở rộng :
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 4 x PCI Express x1 slots * The PCIEX4 slot shares bandwidth with the PCIEX1_3 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot operates at up to x2 mode.
Giao tiếp :
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header 6 x USB 3.1 Gen 1 ports
Bộ nhớ :
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Cổng I/O phía sau :
4 x USB 2.0/1.1 ports 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 3.1 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
Cổng I/O ở trong :
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan/water cooling pump headers 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt™ add-in card connector 1 x Clear CMOS jumper
Kết nối mạng LAN :
Intel® GbE LAN chip (10/100/1000 Mbit)
Âm thanh :
Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Kích thước :
ATX Form Factor; 30.5cm x 24.4cm
Bảo hành :
36 tháng
