Danh mục sản phẩm

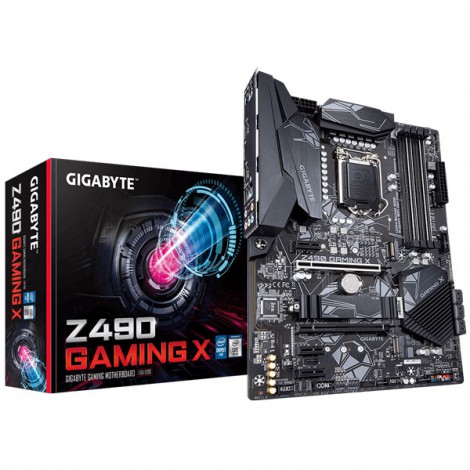

Mainboard GIGABYTE Z490 GAMING X

  • : tnm4772
  • Ngừng kinh doanh
  • Giao tiếp: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • Chipset: Intel® Z490 Express Chipset
  • Socket: 1200
Thông số kỹ thuật
CPU :
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU
RAM :
Intel® Core™ i9/i7 processors: DDR4 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset :
Intel® Z490 Express Chipset
Khe cắm mở rộng :
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Giao tiếp :
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Cổng I/O phía sau :
1 x PS/2 keyboard/mouse port 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 5 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
Cổng I/O ở trong :
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt™ add-in card connectors 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Kết nối mạng LAN :
Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Âm thanh :
Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Hệ điều hành hỗ trợ :
Support for Windows 10 64-bit
Kích thước :
ATX Form Factor; 30.5cm x 23.0cm
Bảo hành :
36 tháng
Mô tả tính năng

GIGABYTE đang cung cấp một nền tảng đã được thử nghiệm và đã được chứng minh, đảm bảo khả năng tương thích phù hợp với các cấu hình lên đến 4600 MHz và cao hơn.

Cấu hình đa đồ họa cung cấp hiệu suất đồ họa tốt hơn cho những người đam mê chơi game, những người đòi hỏi tốc độ khung hình cao nhất mà không ảnh hưởng đến độ phân giải.

Bo mạch chủ GIGABYTE tập trung vào việc cung cấp công nghệ M.2 cho những người dùng muốn tối đa hóa tiềm năng hệ thống của họ. GIGABYTE cung cấp giải pháp nhiệt cho các thiết bị SSD M.2. Bộ bảo vệ nhiệt M.2 ngăn chặn điều tiết và tắc nghẽn từ SSD M.2 tốc độ cao vì nó giúp tản nhiệt trước khi nó trở thành một vấn đề
