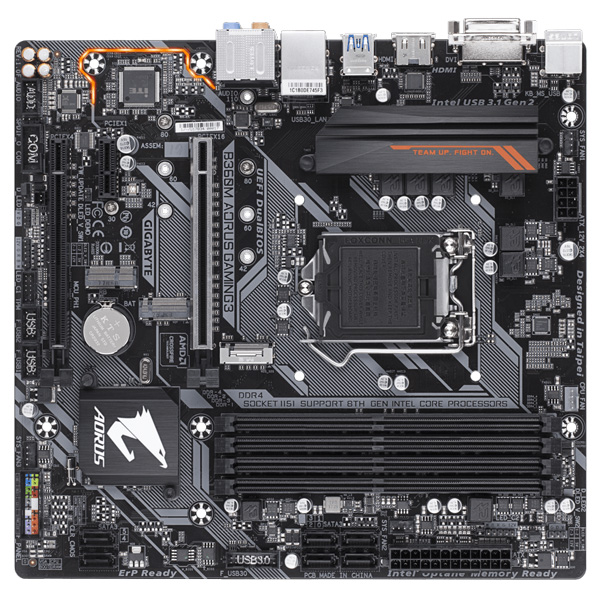

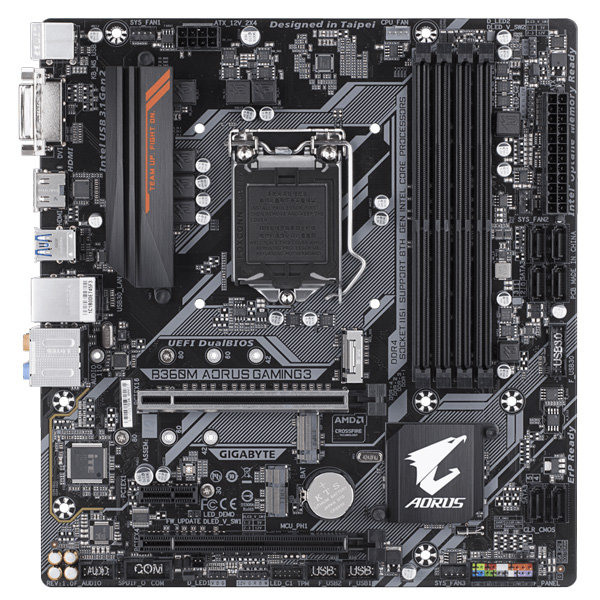

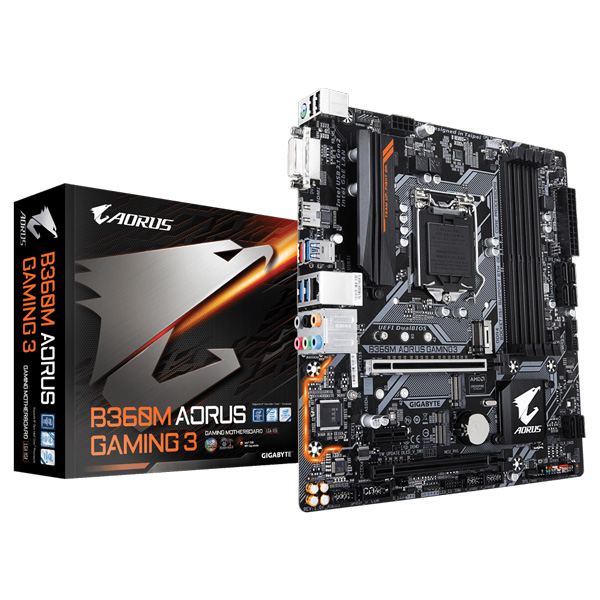

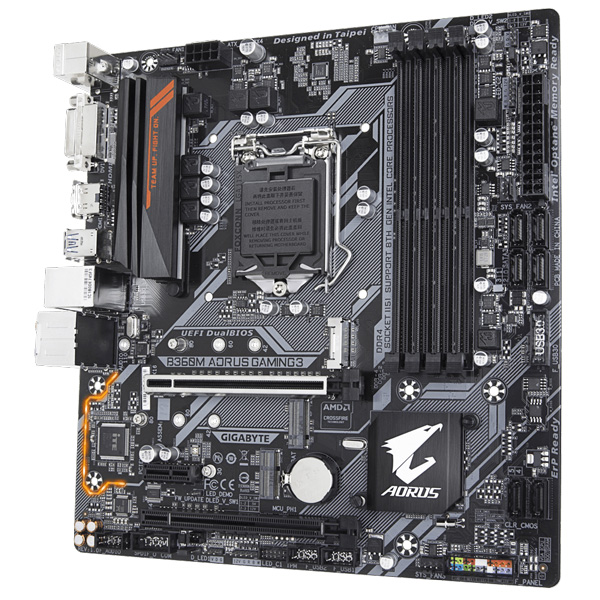

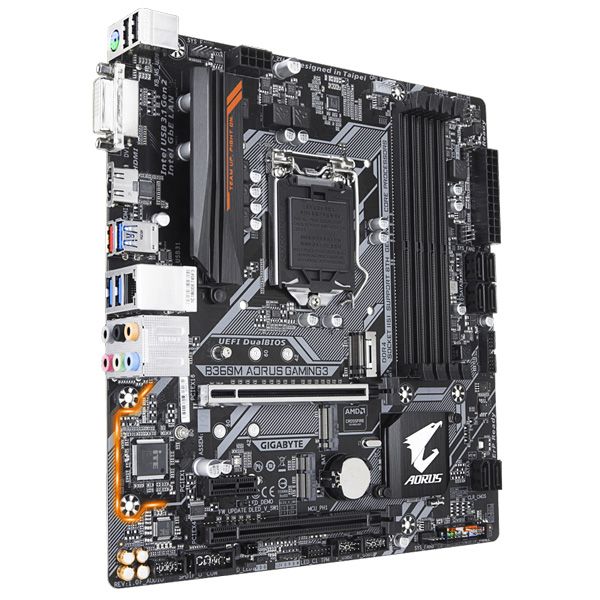

Mã Sản phẩm: tnd8875
| Mục | Mô Tả Chi Tiết |
|---|---|
| CPU | Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 packageL3 cache varies with CPU |
| Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x4 (PCIEX4)1 x PCI Express x1 slot(All of the PCI Express slots conform to PCI Express 3.0 standard.)1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) |
| Chipset | Intel® B360 Express Chipset |
| Giao tiếp | Chipset:1 x USB 3.1 Gen 2 Type-A port (red) on the back panel5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)* The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable. |
| Kích thước | Micro ATX Form Factor; 24.4cm x 23.0cm |
| Kết nối mạng LAN | Intel® GbE LAN chip (10/100/1000 Mbit) |
| Âm thanh | Realtek® ALC892 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Bộ nhớ | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memoryDual channel memory architectureSupport for DDR4 2666/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. |

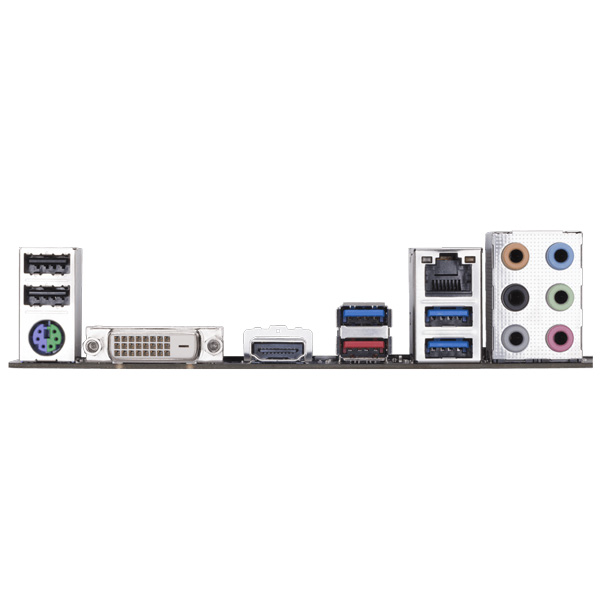

| Cổng I/O phía sau | 1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port1 x USB 3.1 Gen 2 Type-A port (red)3 x USB 3.1 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port6 x audio jacks |

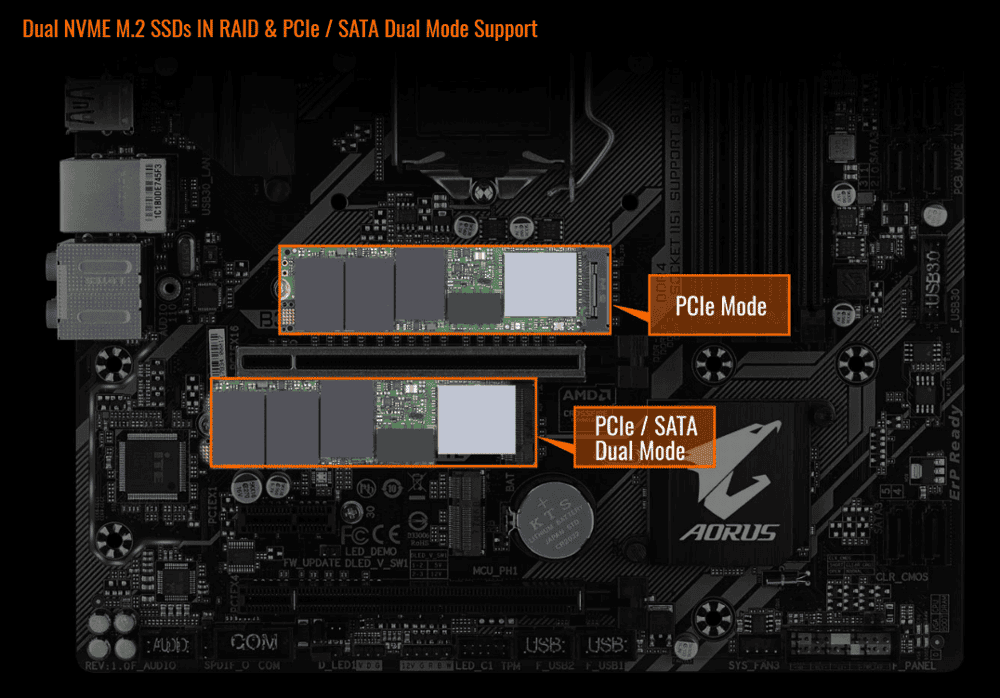

| Cổng I/O ở trong | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers2 x digital LED strip headers2 x digital LED strip power select jumpers2 x RGB (RGBW) LED strip headers6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper |
| Bảo hành | 36 tháng |
| Loại Ram | 4x DDR4 DIMM. Support for DDR4 2666/2400/2133 MHz memory modules |
