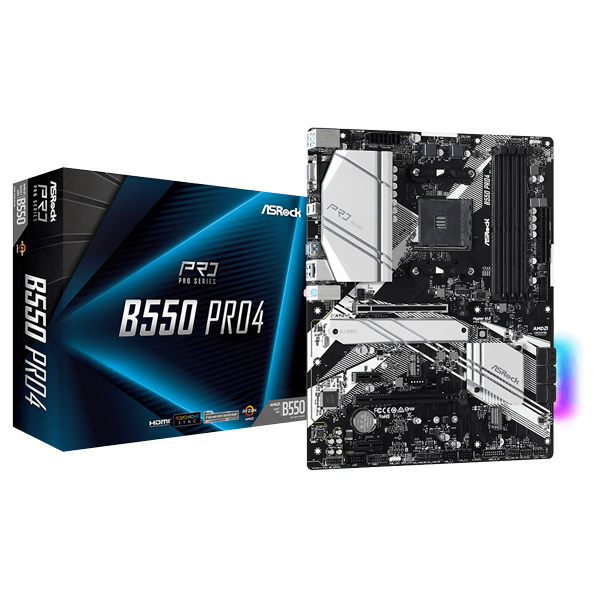

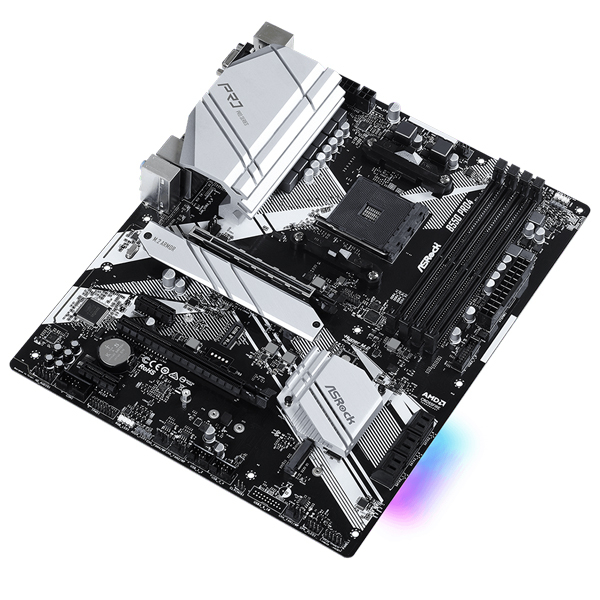

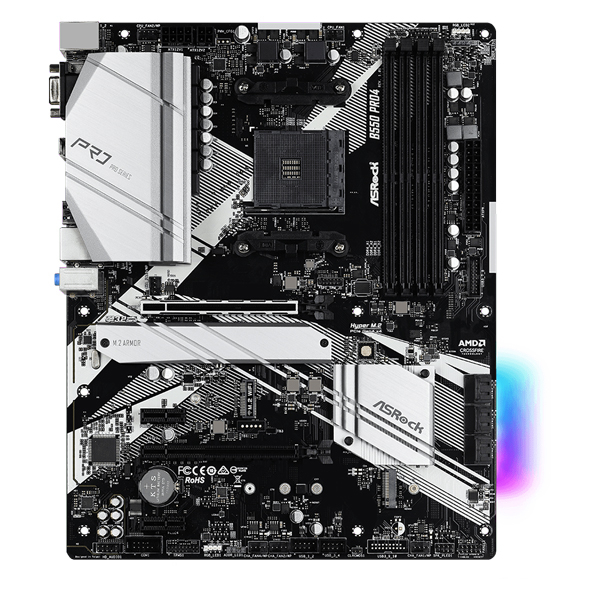

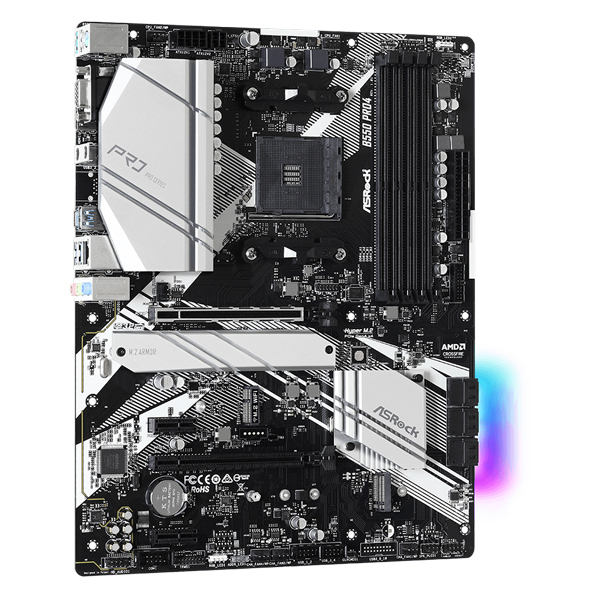

Mainboard Asrock B550 Pro4

  • : tnm5418
  • Giá bán : liên hệ
  • Chipset: AMD B550
  • Chíp xử lý: Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors* - Digi Power design - 8 Power Phase design
Thông số kỹ thuật
Chíp xử lý :
Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors* - Digi Power design - 8 Power Phase design
Bộ nhớ Ram :
Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots
Chipset :
AMD B550
Khe cắm mở rộng :
2 x PCI Express 3.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

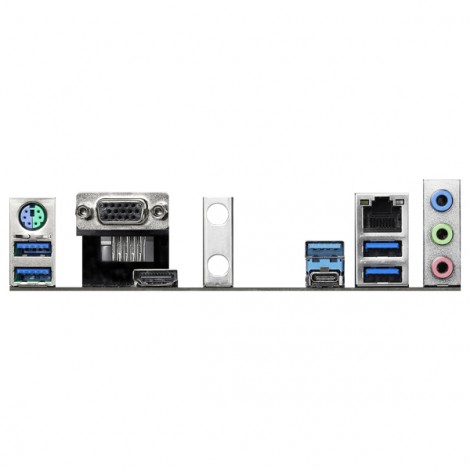

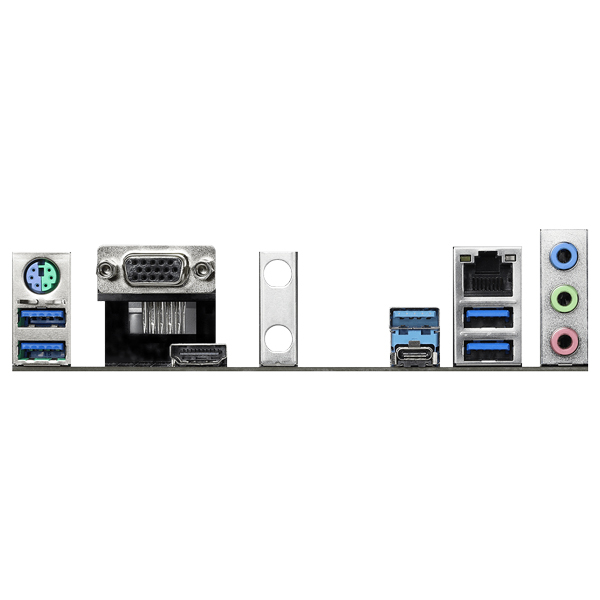

Cổng I/O phía sau :
Antenna Bracket - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Kết nối mạng LAN :
PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Phụ kiện kèm theo :
Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket
Âm thanh :
7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Nahimic Audio
Hệ điều hành hỗ trợ :
Microsoft® Windows® 10 64-bit
Kích thước :
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design - 2oz Copper PCB
Bảo hành :
36 tháng
Hãng sản xuất :
Asrock
Mô tả tính năng

Âm thanh Nahimic Cho dù bạn đang sử dụng tai nghe, loa ngoài hay loa trong, qua USB, Wi-Fi, đầu ra analog hoặc thậm chí HDMI, Nahimic Audio đều mang đến cho bạn trải nghiệm nghe hấp dẫn nhất, sống động và giàu chi tiết.

Có các thành phần chắc chắn và khả năng cung cấp năng lượng hoàn toàn trơn tru cho CPU. Thêm vào đó, nó cung cấp khả năng ép xung chưa từng có và nâng cao hiệu suất với nhiệt độ thấp nhất cho các game thủ cao cấp.

So với cuộn cảm truyền thống, cuộn cảm nguồn 50A cao cấp của ASRock làm cho dòng điện bão hòa tốt hơn đến ba lần, do đó cung cấp điện áp Vcore nâng cao và cải thiện cho bo mạch chủ.
