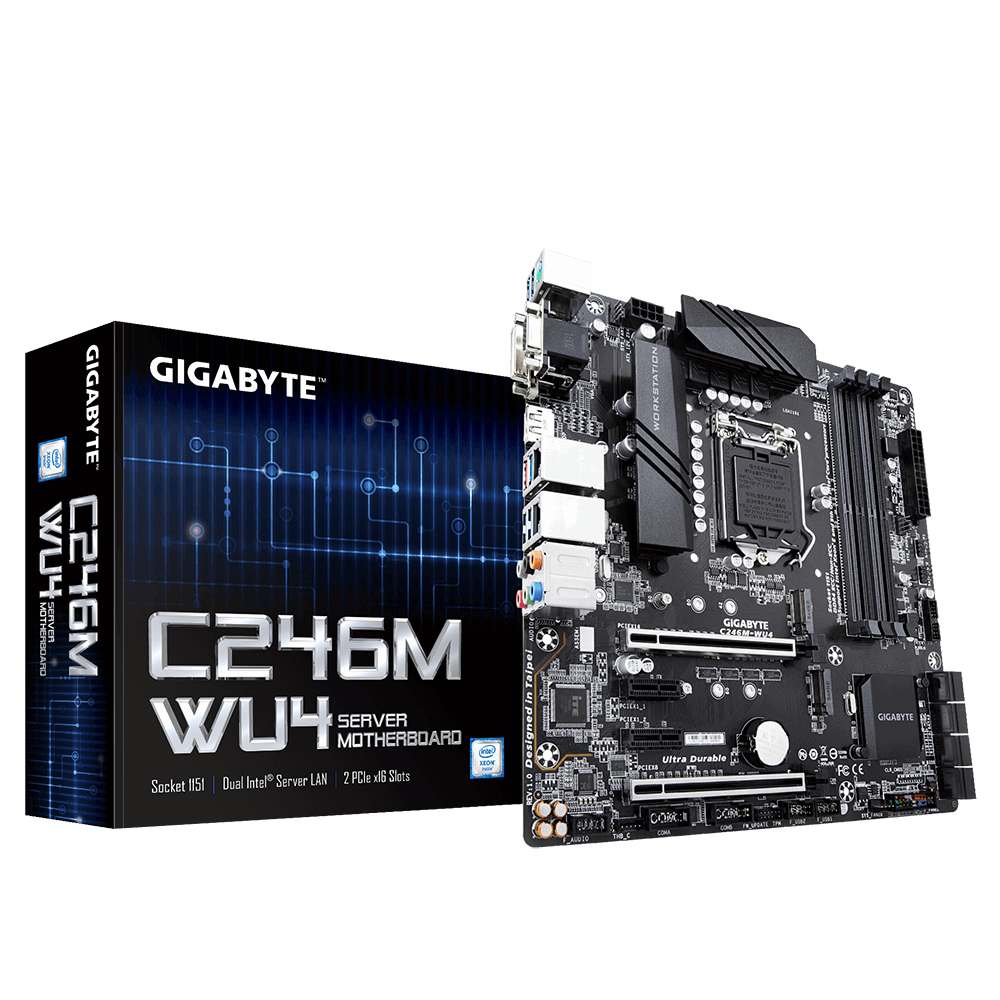

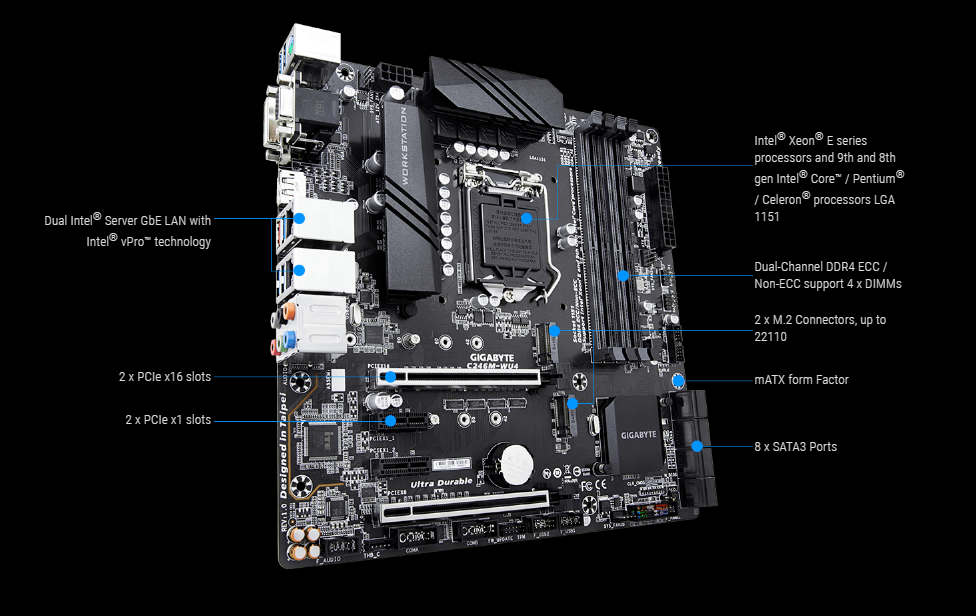

Mainboard Gigabyte C246M-WU4

  • : tnm1435
  • Ngừng kinh doanh
  • Chipset: Intel® C246 Express Chipset
  • CPU hỗ trợ: Intel® C246 Express Chipset, Support for Intel® Xeon® E series processors 9th and 8th Generation Intel® Core™ processors/Intel® Pentium® processors/Intel® Celeron® processors
  • Socket: LGA1151
Thông số kỹ thuật
Loại Ram :
4 x DDR4 DIMM sockets supporting up to 128 GB of system memory. Support for DDR4 2666/2400/2133 MHz memory modules
Chipset :
Intel® X299 Express Chipset
Khe cắm mở rộng :
1 x PCI Express x16 slot, running at x16, 1 x PCI Express x16 slot, running at x8, 2 x PCI Express x1 slots
Giao tiếp :
1 x USB 3.1 Gen 2 Type-A, 7 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports
Bộ nhớ :
4 x DDR4 DIMM sockets supporting up to 128 GB of system memory, Support for DDR4 2666/2400/2133 MHz memory modules
Cổng I/O phía sau :
1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x USB 3.1 Gen 2 Type-A port (red) 5 x USB 3.1 Gen 1 ports 2 x RJ-45 ports 6 x audio jacks
Cổng I/O ở trong :

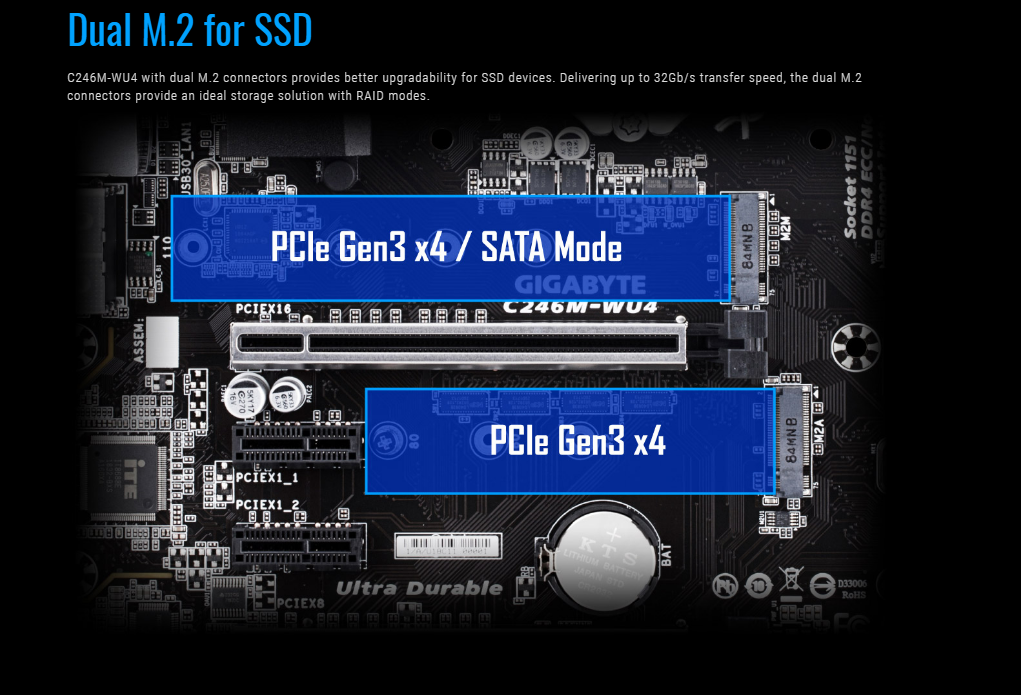

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 2 x SATA detection headers 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 2 x serial port headers 1 x Clear CMOS jumper
Âm thanh :
Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Kích thước :
Micro ATX Form Factor; 24.4cm x 24.4cm
Bảo hành :
36 tháng
