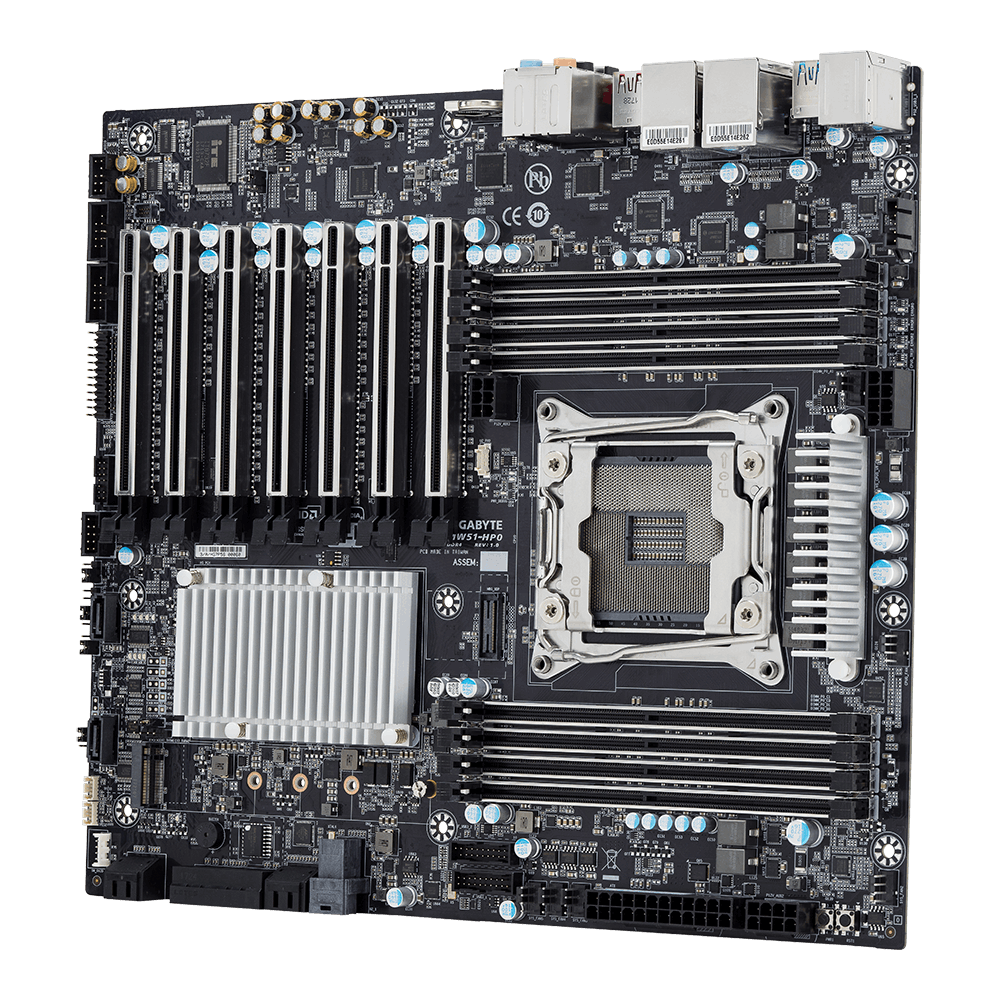

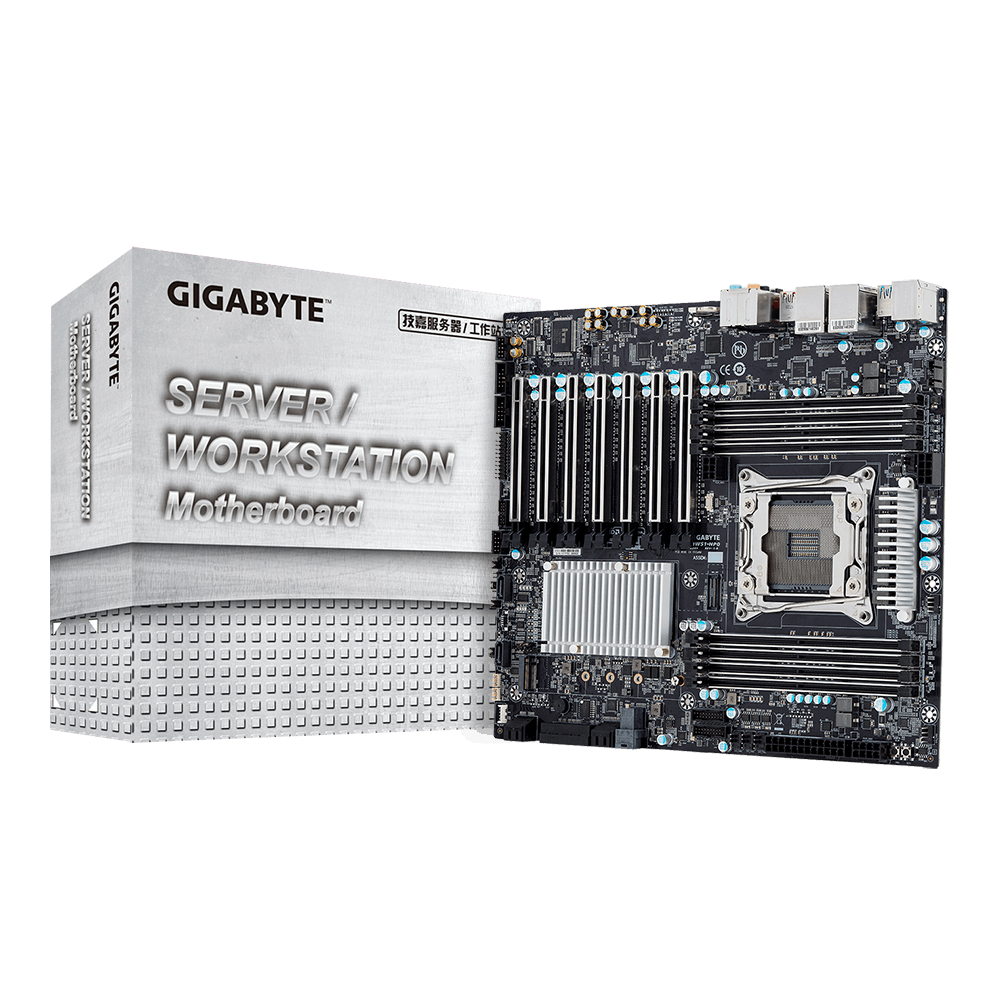

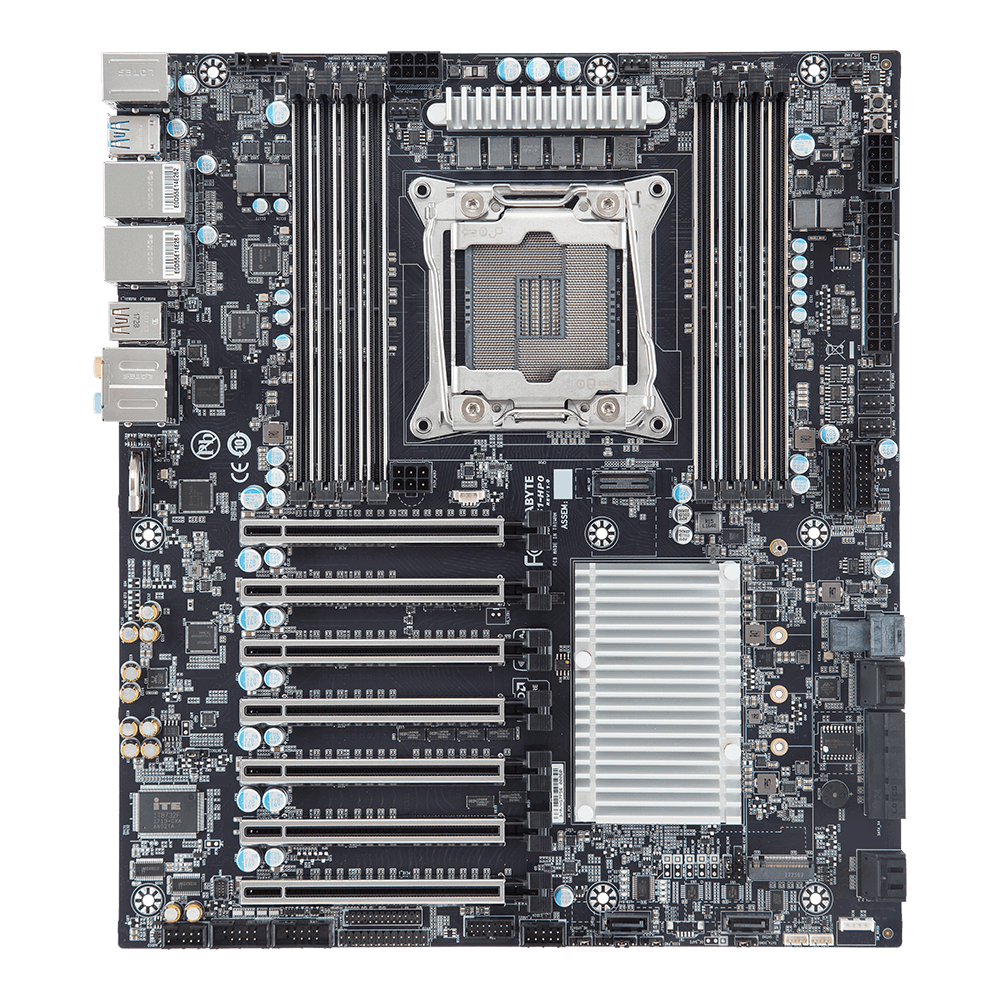

Mainboard Gigabyte MW51-HP0

8 x DIMM slots DDR4 memory module supported only, RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported 1.2V modules: 2666/2400 MHz

 Intel® C422 Express Chipset

1 x PCIe x16, 1 x M.2 slot: - M-key - PCIe Gen3 x4 - Supports NGFF-2242/2260/2280/22110 cards, 1 x U.2 connector: -Mini-SAS HD type - PCIe Gen3 x4

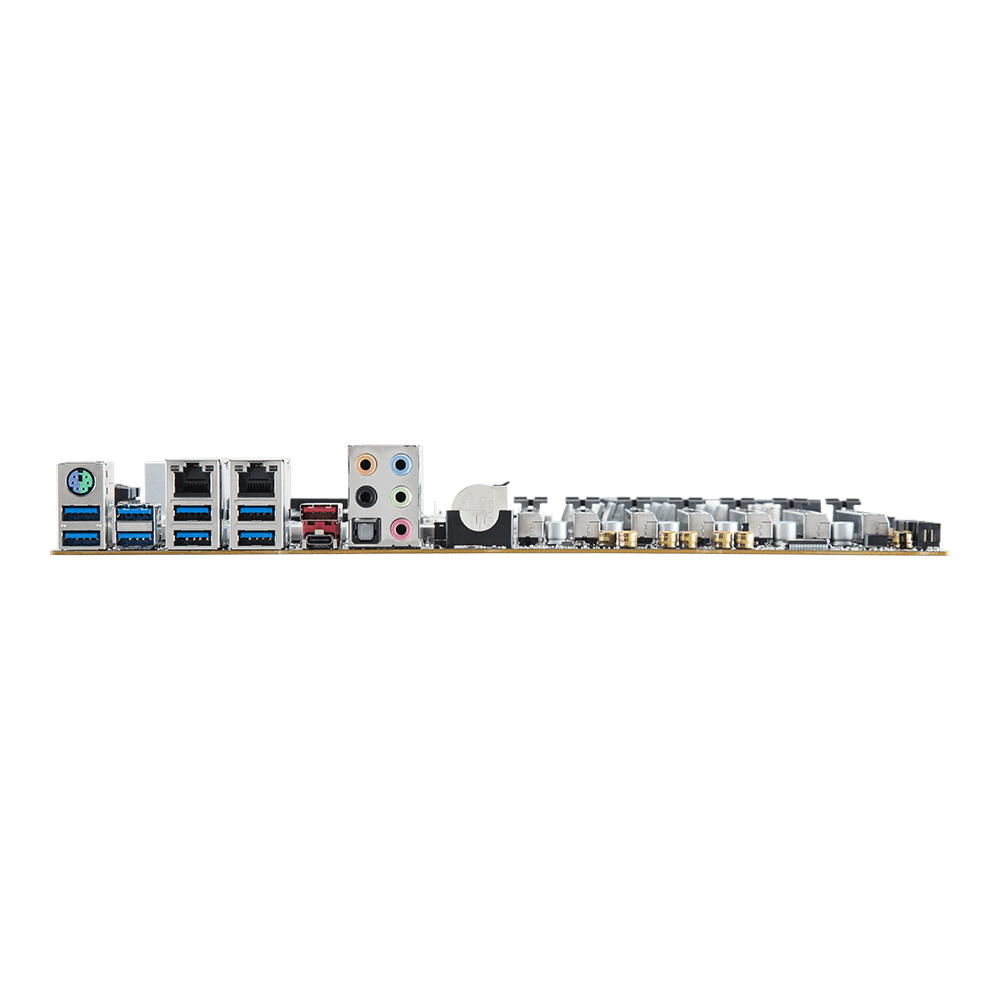

1 x PS/2 8 x USB 3.0 2 x USB 3.1 in Type-A(red) and Type-C(red) (5V/3A) 2 x RJ45 5 x Audio jacks 1 x Optical S/PDIF-Out

8 x DIMM slots DDR4 memory module supported only, RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported 1.2V modules: 2666/2400 MHz

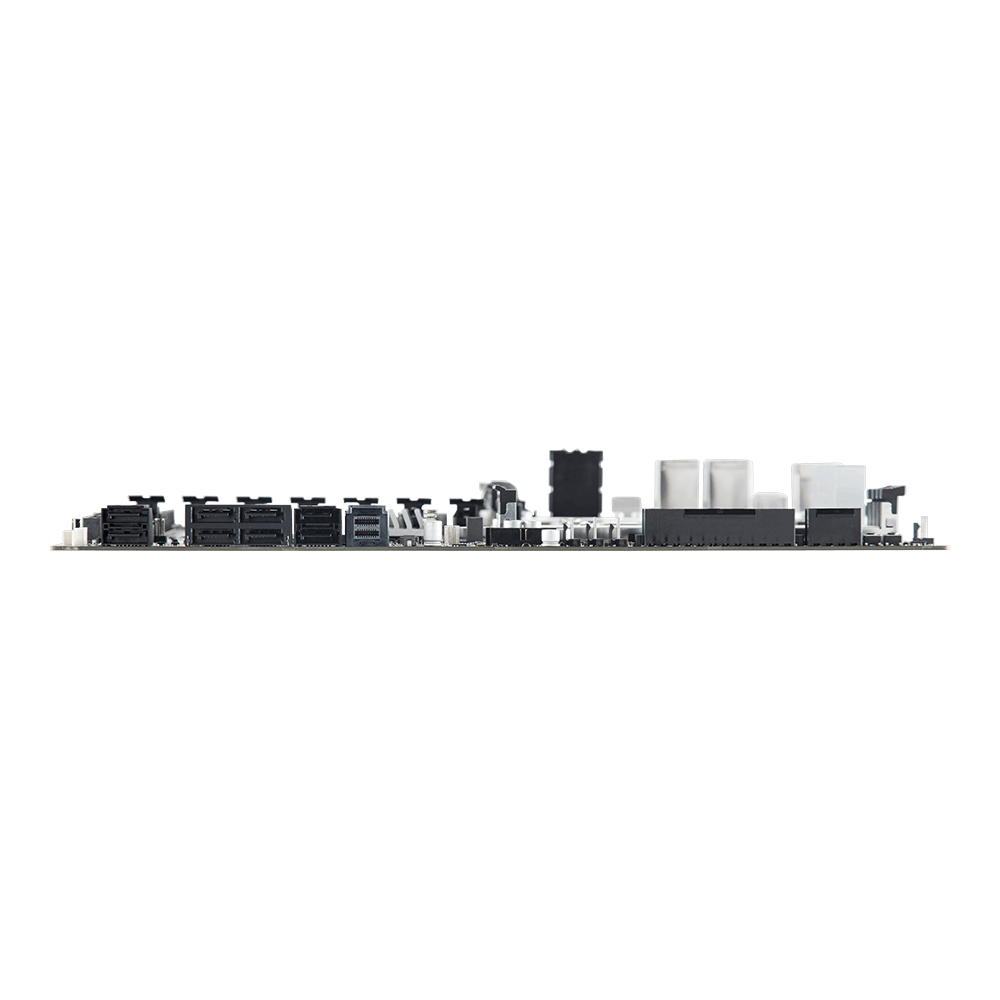

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connector for CPU and DDR 12V input 1 x 6-pin power connector for PCIe slots 12V input 1 x CPU fan header 5 x System fan headers 2 x USB 3.0 headers for 4 ports 1 x USB 2.0 headers for 2 ports 1 x Front audio header 1 x PMBus connector 1 x Clear CMOS jumper 10 x SATA III 6Gb/s ports 2 x SATA DOM jumpers 2 x SATA DOM SGPIO connectors 1 x ME update jumper 1 x M.2 slot 1 x U.2 connector 1 x Front panel header 1 x Back plane board header 2 x COM headers 1 x TPM header 1 x VROC connector 1 x BIOS recovery jumper 1 x Buzzer

CEB 304.8W x 266.7D (mm)

36 tháng
