Mainboard Asrock B550 Taichi

  • : tnm5420
  • Giá bán : liên hệ
  • Chipset: AMD B550
  • Chíp xử lý: Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors* - Digi Power design - 16 Power Phase design
Thông số kỹ thuật
Chíp xử lý :
Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors* - Digi Power design - 16 Power Phase design
Bộ nhớ Ram :
Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots
Loại Ram :
Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots
Chipset :
AMD B550
Khe cắm mở rộng :
2 x PCI Express 3.0 x1 Slots - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Cổng I/O phía sau :

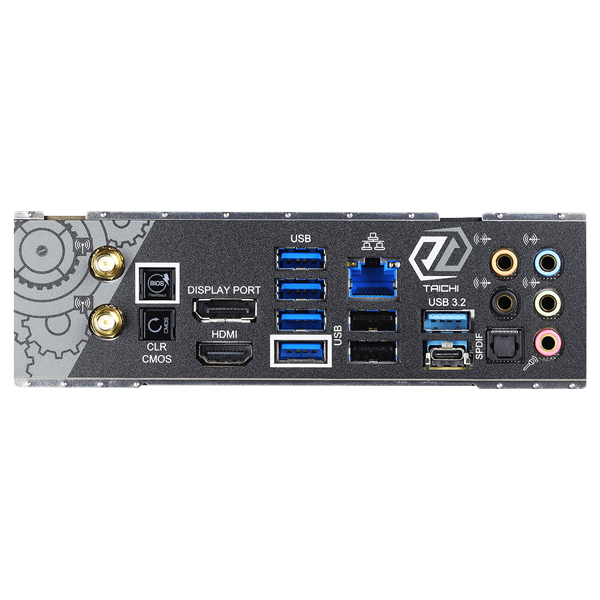

2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Wifi :
Intel® 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports WiFi6 802.11ax (2.4Gbps) - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.1 + High speed class II - Supports MU-MIMO
Kết nối mạng LAN :
2.5 Gigabit LAN 10/100/1000/2500 Mb/s - GigaLAN Intel® I225V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Phụ kiện kèm theo :
Quick Installation Guide, Support CD - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5 GHz Antenna - 1 x ASRock Screwdriver - 2 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets.
Âm thanh :
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - 120dB SNR DAC with Differential Amplifier - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio
Hệ điều hành hỗ trợ :
Microsoft® Windows® 10 64-bit
Kích thước :
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
Bảo hành :
36 tháng
Hãng sản xuất :
Asrock
Mô tả tính năng

Nắp trên của Mainboard Asrock B550 Taichi được rèn bằng hợp kim nhôm giúp cải thiện hiệu quả khả năng tản nhiệt. Bên dưới lớp vỏ chắc chắn chắc chắn của nó là hai ổ cắm M.2 Key M cần thiết để chơi game cho SSD tốc độ cao.

Ổ cắm Hyper M.2 hỗ trợ PCIe Gen4 x4 trong khi ổ cắm Ultra M.2 có khả năng chạy chế độ PCIe Gen3 x4 và SATA3.

Cho dù bạn đang sử dụng tai nghe, loa ngoài hay loa trong, qua USB, Wi-Fi, đầu ra analog hoặc thậm chí HDMI, Nahimic Audio đều mang đến cho bạn trải nghiệm nghe hấp dẫn nhất, sống động và giàu chi tiết.

So với cuộn cảm truyền thống, cuộn cảm điện 60A cao cấp của ASRock làm cho dòng điện bão hòa tốt hơn đến ba lần, do đó cung cấp điện áp Vcore nâng cao và cải thiện cho bo mạch chủ.
