Mainboard ASUS PRIME X399-A, tháng 04-2024

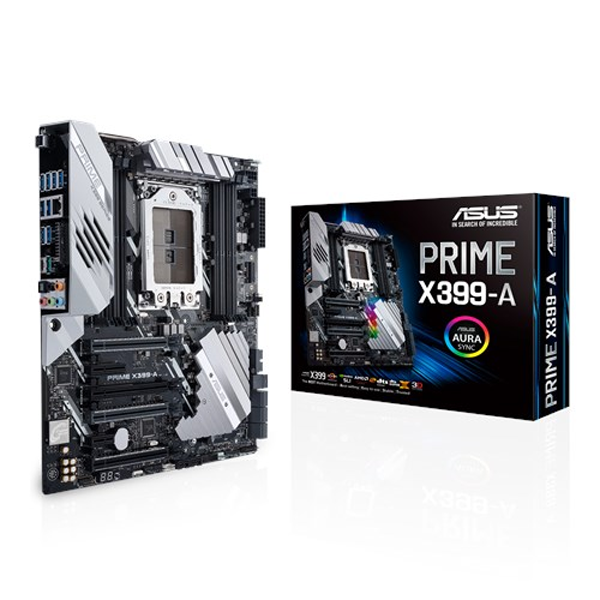

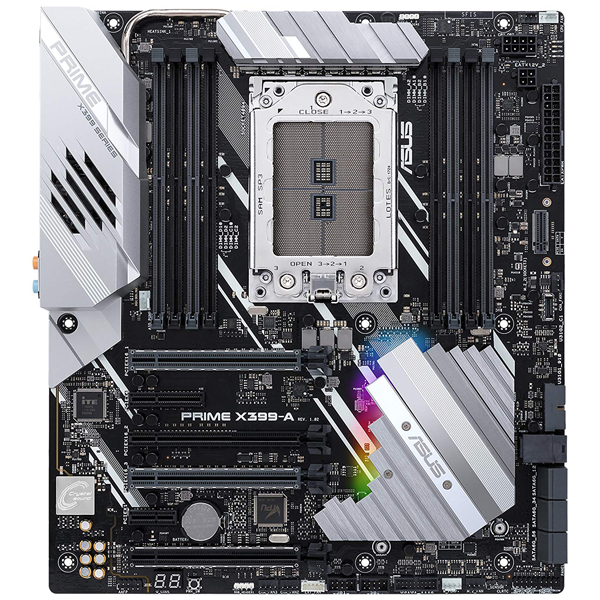

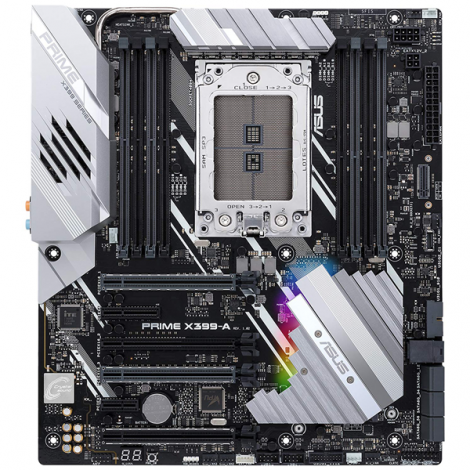

Mainboard ASUS PRIME X399-A

Mã sản phẩm : tnm1942
Người dùng đánh giá:

Ngừng kinh doanh

Chipset: AMD X399
CPU hỗ trợ: AMD SocketTR4 for 1st and 2nd Gen AMD Ryzen™ Threadripper™ Processors

Thông số kỹ thuật
Mô tả tính năng
Đánh giá
Sản phẩm liên quan

Thông số kỹ thuật

CPU	:	AMD SocketTR4 for 1st and 2nd Gen AMD Ryzen™ Threadripper™ Processors
RAM	:	AMD Ryzen™ Threadripper™ Processors 8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Loại Ram	:	AMD Ryzen™ Threadripper™ Processors 8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Chipset	:	AMD X399
Khe cắm mở rộng	:	AMD Ryzen™ Threadripper™ Processors 4 x PCIe 3.0 x16 (single@x16, dual@x16/x16, triple@x16/x16/x8 mode) AMD X399 chipset 1 x PCIe 2.0 x4 (max at x4 mode) 1 x PCIe 2.0 x1
Giao tiếp	:	AMD Ryzen™ Threadripper™ Processors : 8 x USB 3.1 Gen 1 port(s) (8 at back panel, , Type-A) AMD X399 chipset : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board) AMD X399 chipset : 4 x USB 3.1 Gen 1 port(s) (4 at mid-board) AMD X399 chipset : 4 x USB 2.0 port(s) (4 at mid-board) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM)

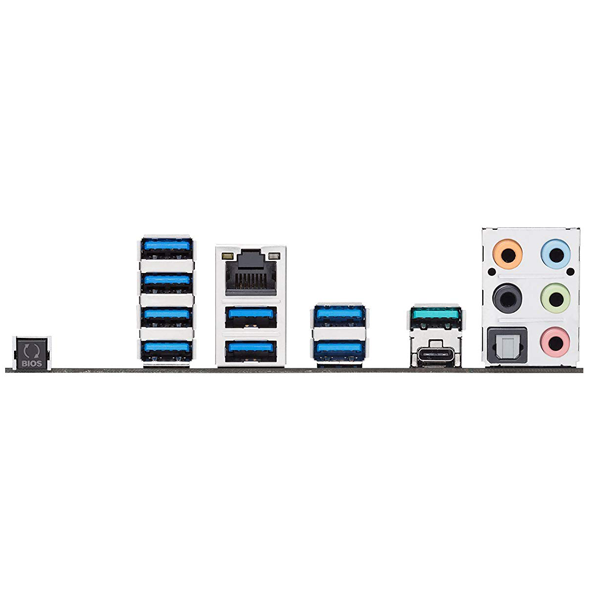

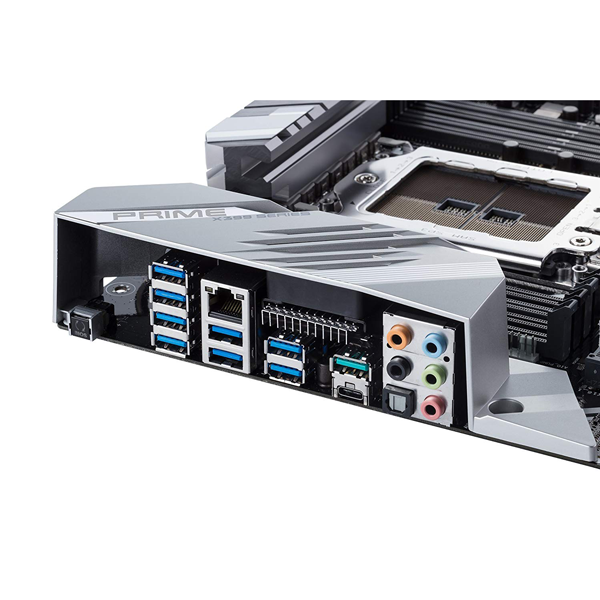

Cổng I/O phía sau	:	1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue)Type-A + USB Type-CTM 8 x USB 3.1 Gen 1 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback® Button(s)
Cổng I/O ở trong	:	1 x 3-pin Cover fan (COV_FAN) connector 1 x Q_Code 1 x U.2 port 2 x Aura RGB Strip Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS button(s) 1 x USB 3.1 Gen 2 front panel connector
Kết nối mạng LAN	:	Intel® I211-AT ASUS Turbo LAN Utility ASUS LAN Guard
Âm thanh	:	Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB (Line-out at rear) and 113 dB SNR recording input (Line-in) Audio Feature : - DTS Connect - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - EMI protection cover to prevent electrical noise to affect the amplifier quality Separate layer for left and right track, ensuring both sound deliver equal quality
Hệ điều hành hỗ trợ	:	Windows® 10 64-bit
Kích thước	:	Extended ATX Form Factor 12 inch x 10.6 inch ( 30.5 cm x 26.9 cm )
Bảo hành	:	36 tháng

Mô tả tính năng

ASUS Prime X399-A is the EATX motherboard that's been expertly engineered for professional content creators and power users who work hard by day and play harder by night. This powerful, innovative board puts a friendly face on advanced enthusiast controls, enabling you to maximize performance, cooling and personalization with ease. So, if you live to create, explore, and to push the boundaries, look no further than the Prime X399-A.

The Prime X399-A Cooling Kit contains an SOC heatsink and a fan bracket, designed to cool vital motherboard power delivery areas to enhance the overclocking potential of 2nd Gen Threadripper WX Series Processors. The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
