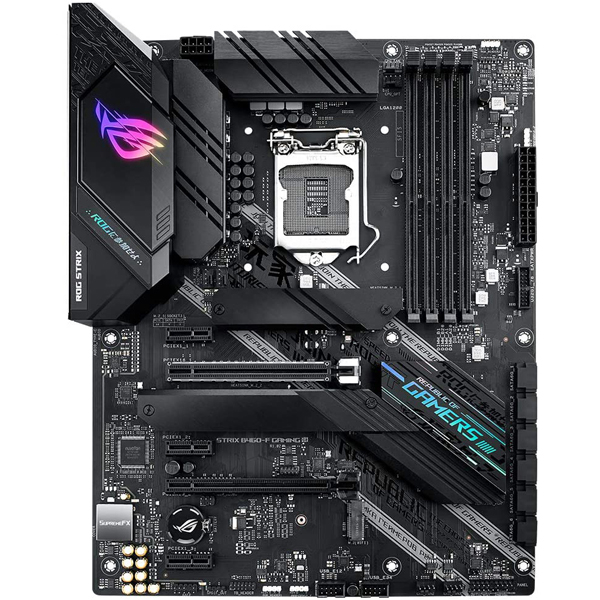

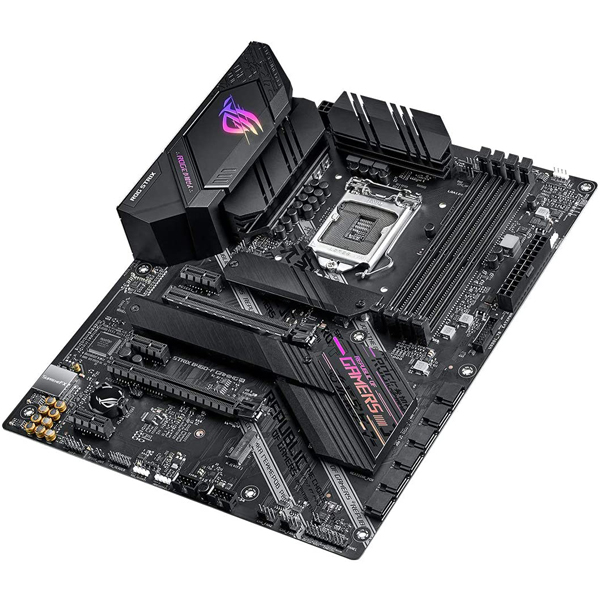

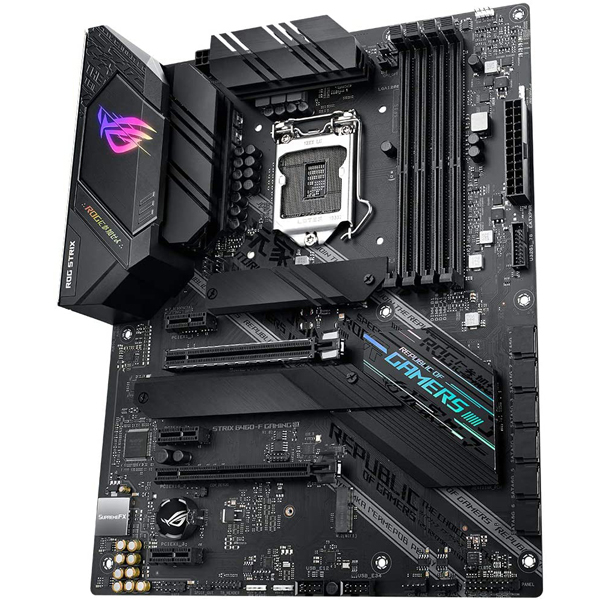

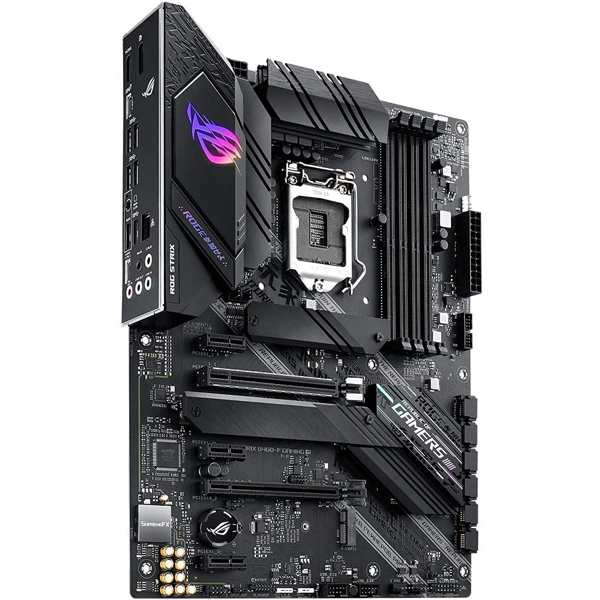

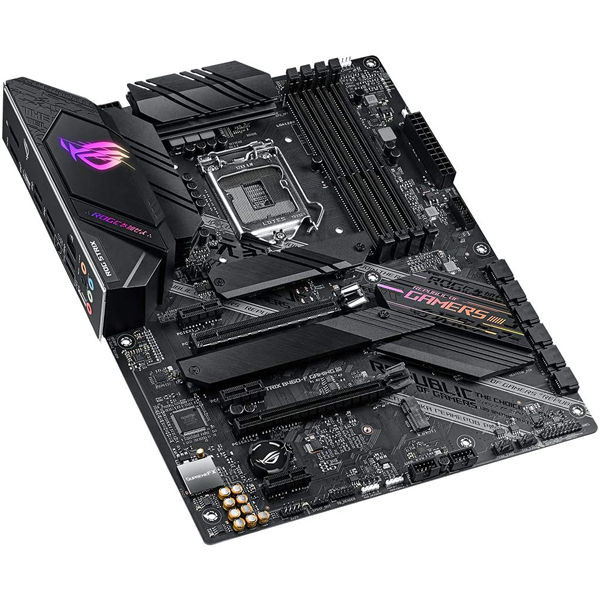

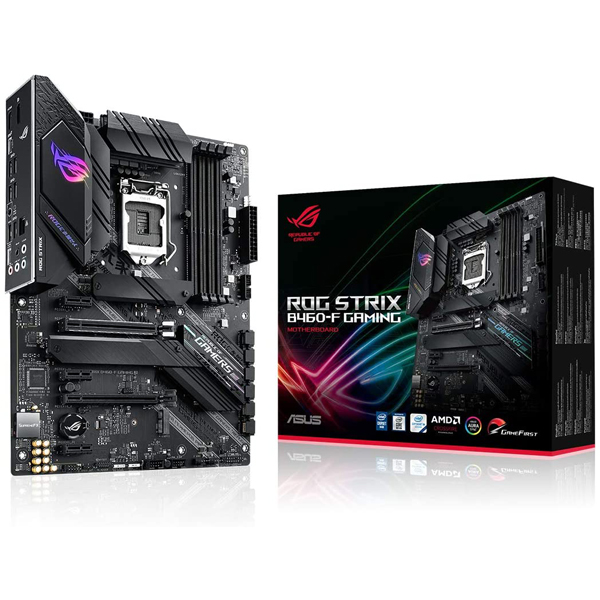

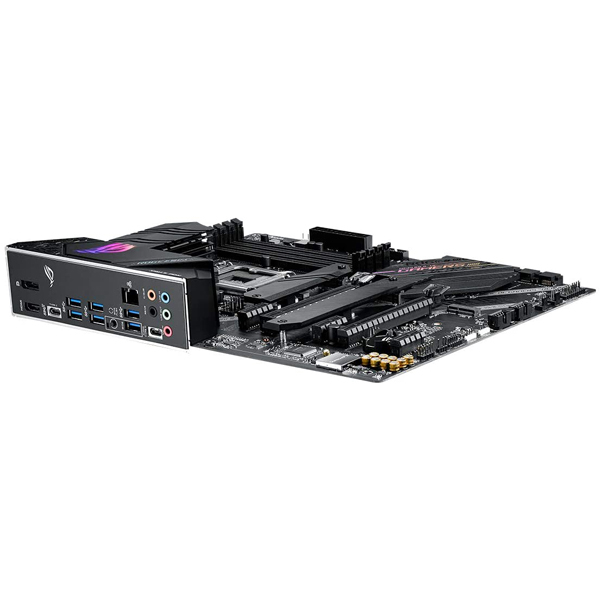

Mainboard ASUS ROG STRIX B460-F GAMING

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Intel® B460

Intel® 10th Gen Processors 1 x PCIe 3.0 x16 Intel® B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) *1 3 x PCIe 3.0 x1 *2

Rear USB Port ( Total 8 ) 1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C®) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 1 x USB 2.0 port(s)(1 x audio USB Type-C® ) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)

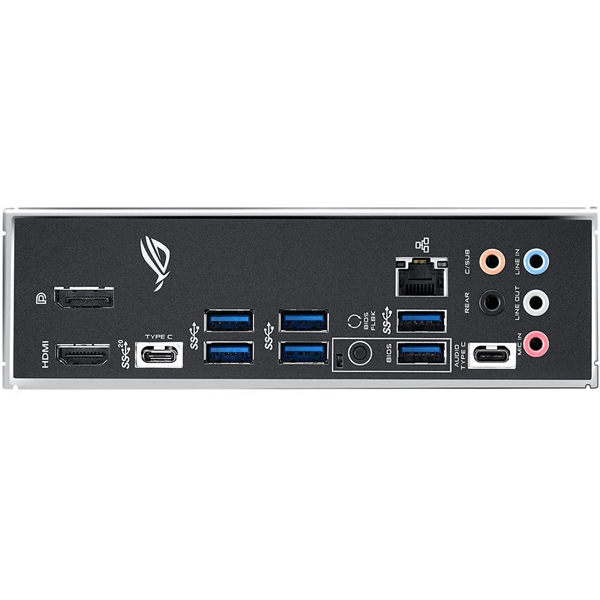

1 x Intel® I219-V 1Gb Ethernet 1 x DisplayPort 1 x HDMI 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 6 x USB 3.2 Gen 1 1 x USB 2.0 (1 for audio USB Type-C®) 5 x Audio jack(s) 1 x USB BIOS FlashBack™ Button(s)

1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector

Intel® I219-V 1Gb Ethernet ASUS LANGuard

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Windows® 10 64-bit

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

36 tháng
