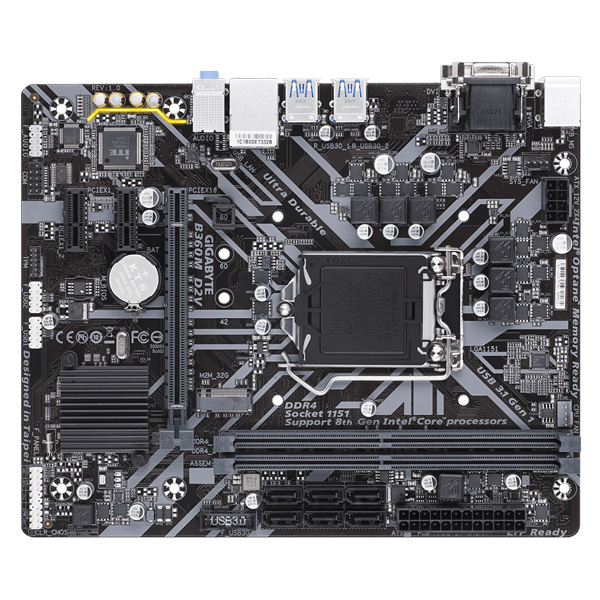

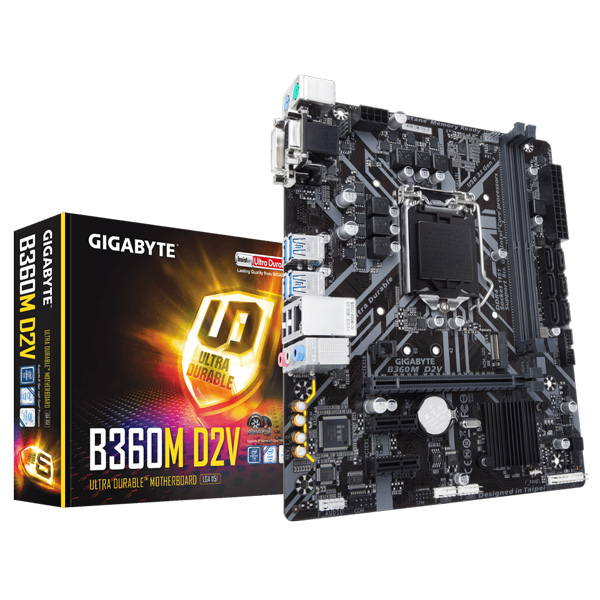

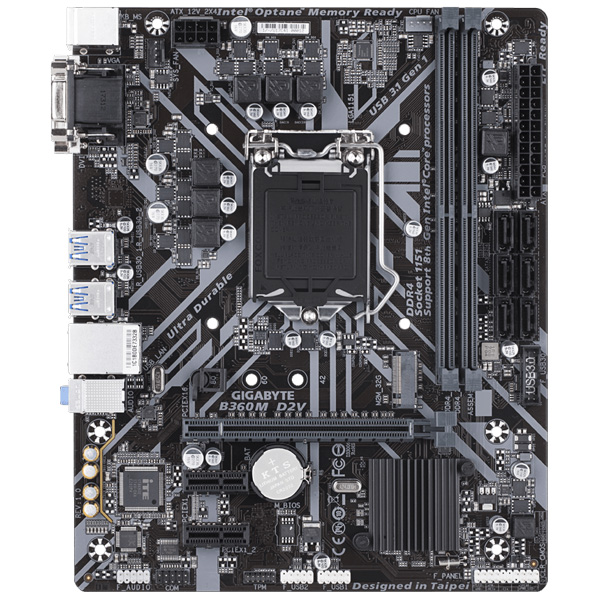

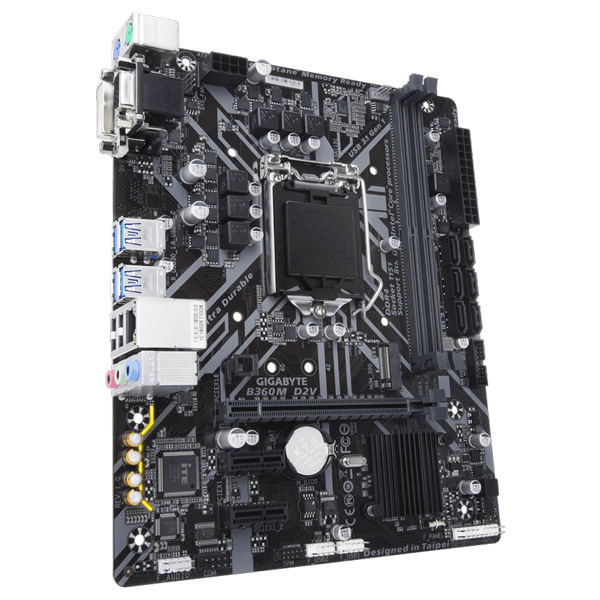

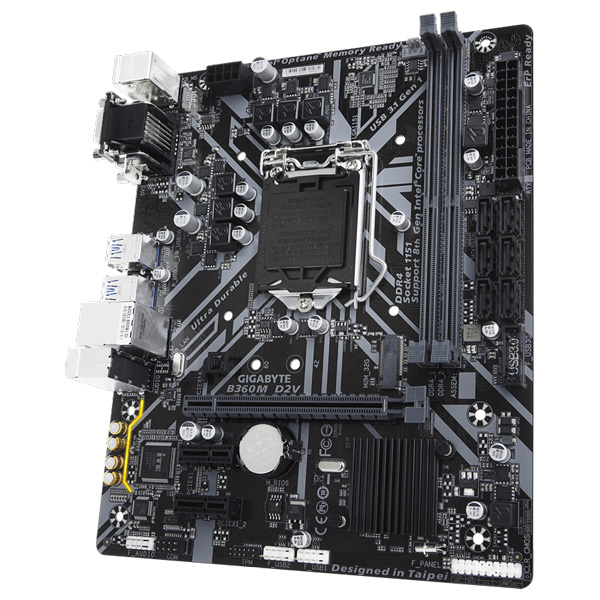

Mainboard Gigabyte B360M D2V
Mainboard Gigabyte B360M D2V
Mainboard Gigabyte B360M D2V
Mainboard Gigabyte B360M D2V
Mainboard Gigabyte B360M D2V
Mainboard Gigabyte B360M D2V
Mainboard Gigabyte B360M D2V
Mainboard Gigabyte B360M D2V
Mainboard Gigabyte B360M D2V
Mainboard Gigabyte B360M D2V
Mainboard Gigabyte B360M D2V
Mainboard Gigabyte B360M D2V

Mainboard Gigabyte B360M D2V

  • : tnd8873
  • Ngừng kinh doanh
  • Chipset: Intel B360 Chipset
  • CPU hỗ trợ: Only support for 8th Generation Intel LGA1151
  • Socket: 1151
Thông số kỹ thuật
Chíp xử lý :
Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 packageL3 cache varies with CPU
Loại Ram :
2x DDR4  DIMM,Support for DDR4 2666/2400/2133 MHz memory modules
Chipset :
Intel® B360 Express Chipset
Giao tiếp :
Chipset:6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Bộ nhớ :
2 x DDR4 DIMM sockets supporting up to 32 GB of system memoryDual channel memory architectureSupport for DDR4 2666/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules

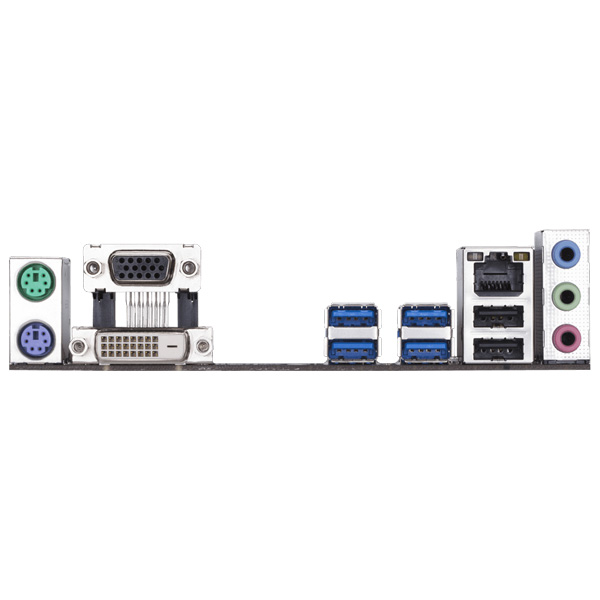

Cổng I/O phía sau :
1 x PS/2 mouse port1 x PS/2 Keyboard port1 x D-Sub port1 x DVI-D port4 x USB 3.1 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks
Cổng I/O ở trong :
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header6 x SATA 6Gb/s connectors1 x M.2 Socket 3 connector1 x front panel header1 x front panel audio header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper
Kết nối mạng LAN :
Realtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanh :
Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Kích thước :
Micro ATX Form Factor; 22.6cm x 18.5cm
Bảo hành :
36 tháng
Hãng sản xuất :
Gigabyte
Mô tả tính năng

Mainboard Gigabyte B360M D2V

  • Ngừng kinh doanh
