Mục

Mô Tả Chi Tiết

CPU

Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 packageL3 cache varies with CPU

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16(The PCIEX16 slot conforms to PCI Express 3.0 standard.)2 x PCI Express x1 slots(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Chipset

Intel® H310 Express Chipset

Giao tiếp

Chipset:4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Kết nối mạng LAN

Intel® GbE LAN chip (10/100/1000 Mbit)

Âm thanh

Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Bộ nhớ tiêu chuẩn

2 x DDR4 DIMM sockets supporting up to 32 GB of system memoryDual channel memory architectureSupport for DDR4 2666/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

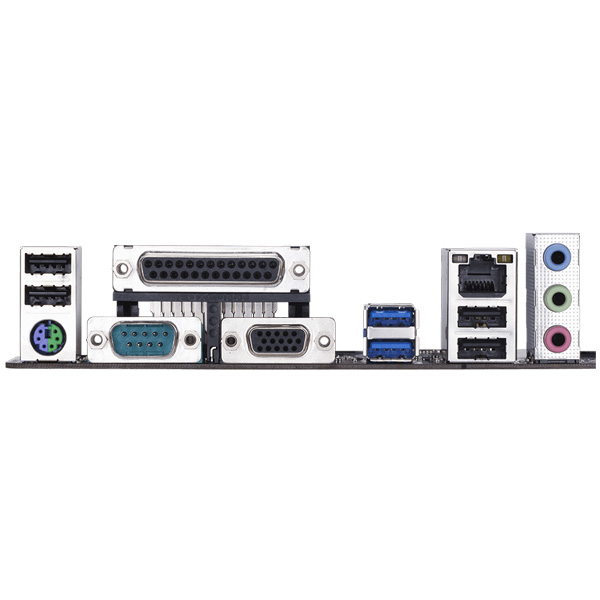

Cổng I/O phía sau

1 x PS/2 keyboard/mouse port1 x parallel port1 x serial port1 x D-Sub port2 x USB 3.1 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks

Cổng I/O ở trong

1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x USB 3.1 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper

Loại Ram

2x DDR4 DIMM.Support for DDR4 2666/2400/2133 MHz memory modules

Kích thước

Micro ATX Form Factor; 22.6cm x 17.4cm

Bảo hành

36 tháng
