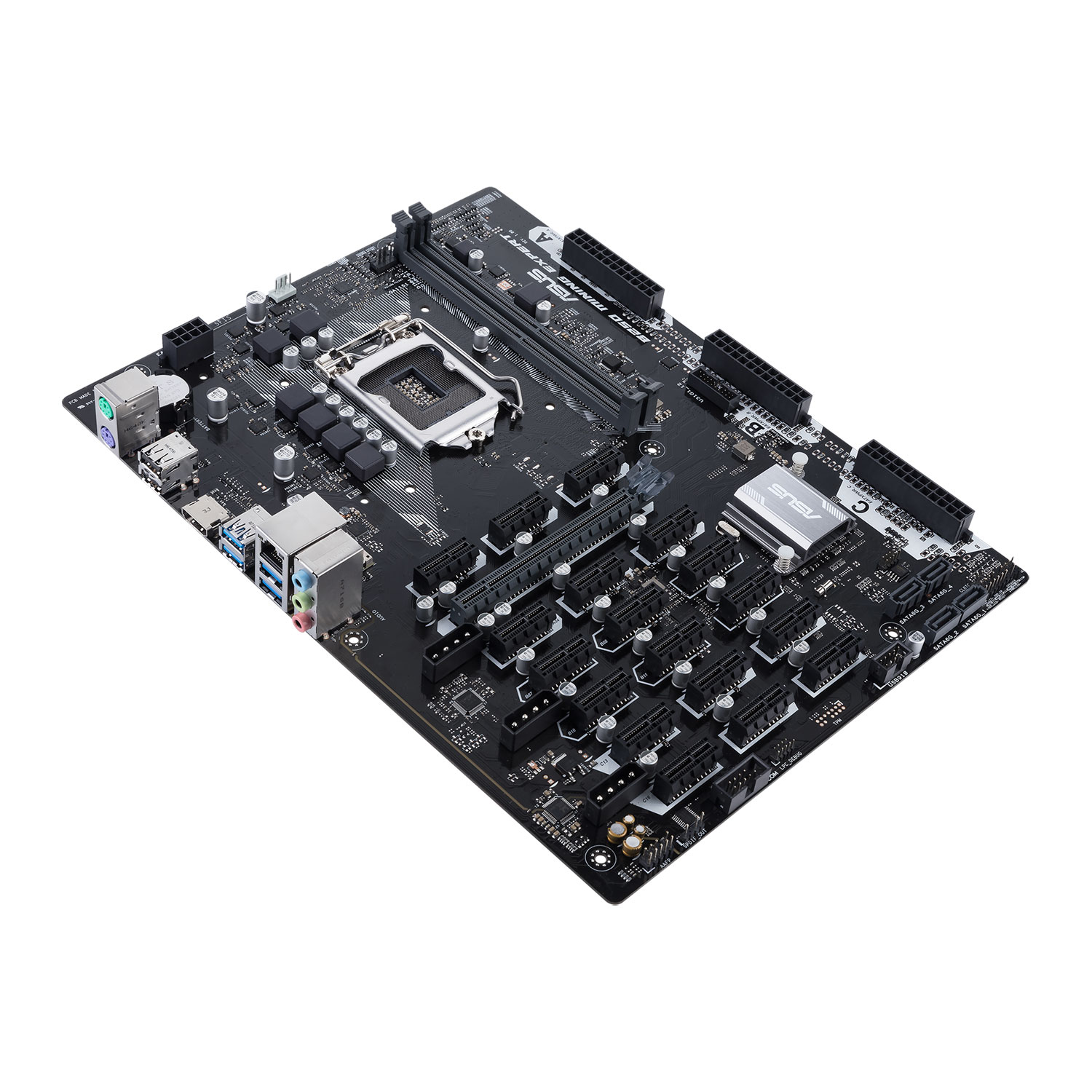

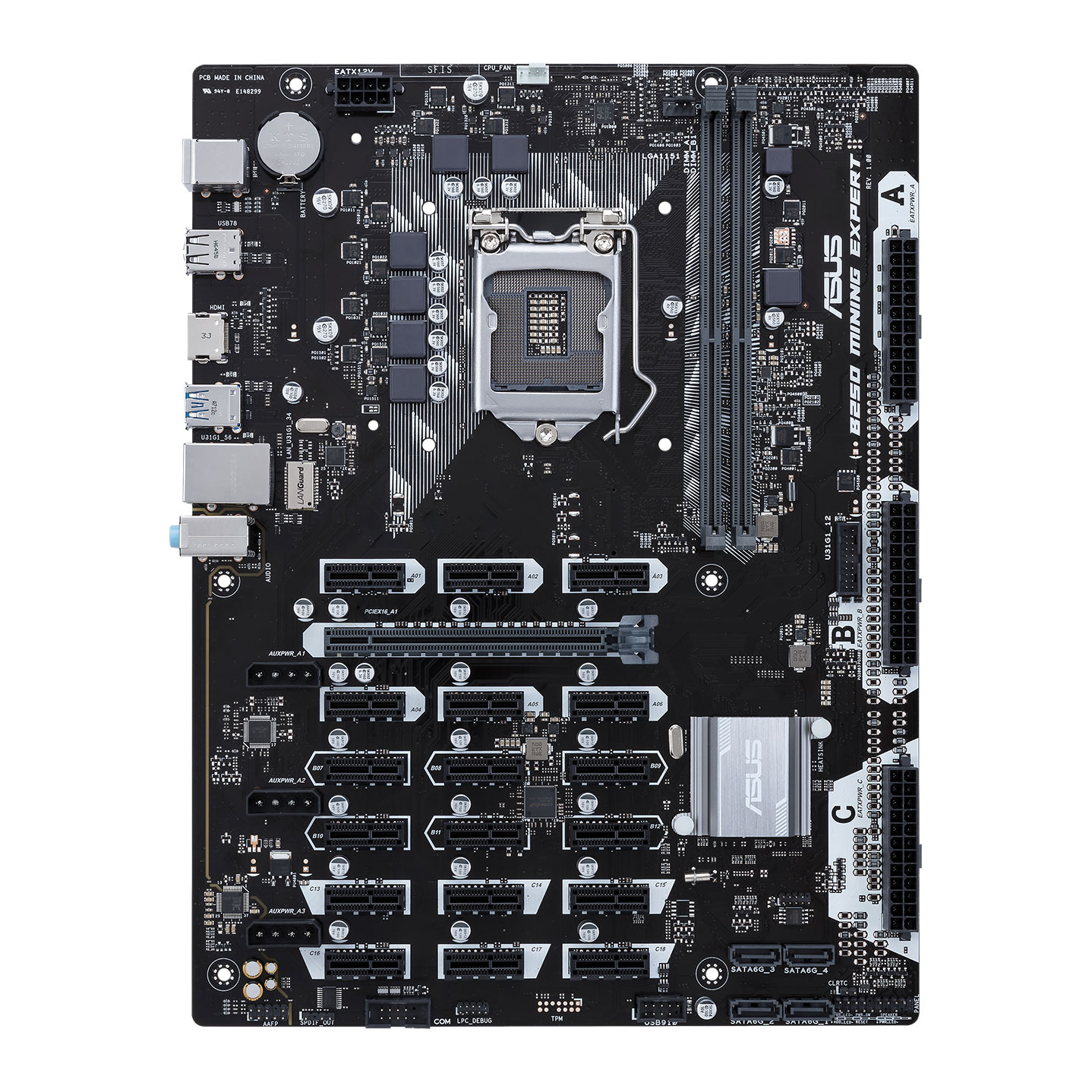

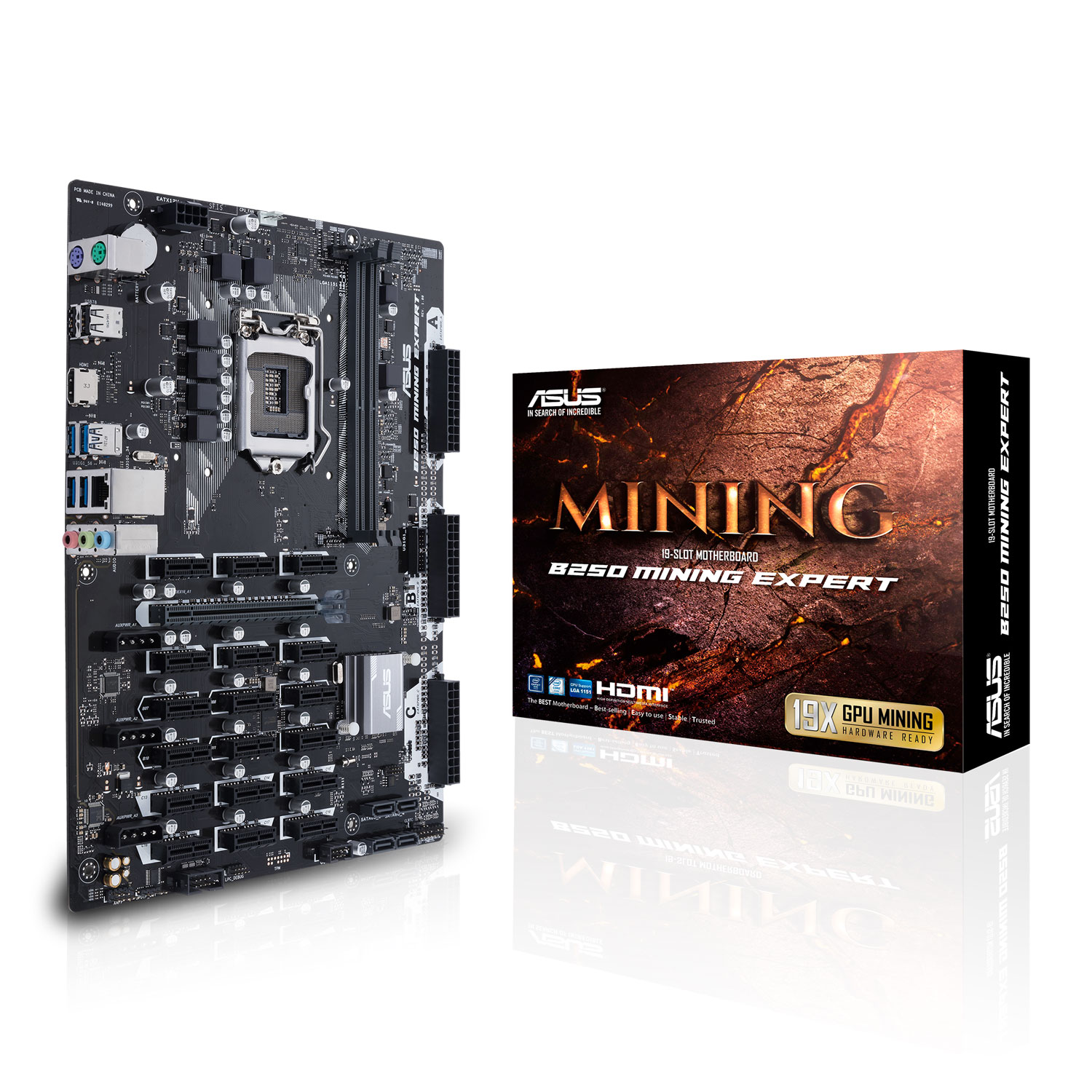

Mainboard ASUS B250 MINING EXPERT

  • : tnd8360
  • Ngừng kinh doanh
  • Chipset: Intel® B250
  • CPU hỗ trợ: Intel® Socket 1151 cho Thế hệ thứ 7/thứ 6 Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
  • Socket: 1151
Thông số kỹ thuật
Chíp xử lý :
Intel® Socket 1151 cho Thế hệ thứ 7/thứ 6 Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Bộ vi xử lý Hỗ trợ Intel® 14 nm CPUHỗ trợ công nghệ Intel® Turbo Boost 2.0
Card đồ họa :
Bộ vi xử lý Đồ họa Tích hợp - Hỗ trợ Intel® HD Graphics Hỗ trợ đầu ra VGA : HDMI cổng- Hỗ trợ HDMI với độ phân giải tối đa 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 HzBộ nhớ chia sẻ tối đa 1024 MB
Loại Ram :
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Không ECC, Không Đệm Bộ nhớ
Chipset :
Intel® B250
Khe cắm mở rộng :
1 x PCIe x16 (chế độ x16) 18 x PCIe x1
Giao tiếp :
Bộ chip Intel® B250 : 6 x Cổng USB 3.1 Gen 1 (4 ở mặt sau, màu xanh, , 2 ở giữa bo mạch, Kiểu A)Bộ chip Intel® B250 : 4 x Cổng USB 2.0/1.1 (2 ở mặt sau, màu xanh, , 2 ở giữa bo mạch)
Bộ nhớ :
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Không ECC, Không Đệm Bộ nhớ Hỗ trợ công nghệ bộ nhớ Intel Extreme Memory Profile (XMP)

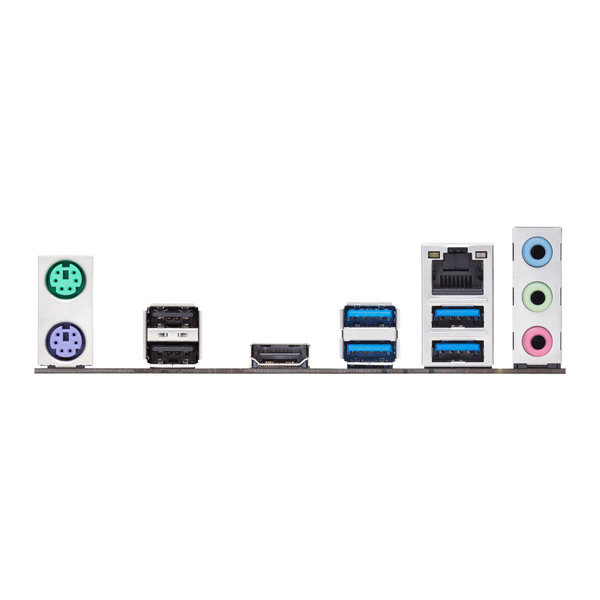

Cổng I/O phía sau :
1 x bàn phím PS / 2 (màu tím)1 x chuột PS / 2 (màu xanh)1 x HDMI1 x cổng LAN (RJ45)4 x USB 3.1 thế hệ thứ 1 (màu xanh) Kiểu A 2 x USB 2.0 3 x giắc cắm âm thanh
Cổng I/O ở trong :
1 x Đầu cắm USB 3.1 Thế hệ 1 hỗ trợ thêm 2 cổng USB 3.1 Thế hệ 1 (19-pin)1 x Đầu cắm USB 2.0 hỗ trợ thêm 2 cổng USB 2.01 x kết nối cổng COM4 x kết nối SATA 6Gb / s1 x kết nối CPU Fan (1 x 4 chân)1 x kết nối Chassis Fan (1 x 4 chân)1 x Đầu ra S/PDIF3 x kết nối điện năng 24-pin EATX1 x kết nối điện năng 8-pin ATX 12V 1 x kết nối Giắc cắm âm thanh (AAFP)1 x bảng điều khiển Hệ thống 3 x đầu cắm AUXPWR 4 chân
Kết nối mạng LAN :
Intel® I219V, 1 x Bộ điều khiển Gigabit LAN
Âm thanh :
Realtek® ALC887 8-kênh CODEC Âm thanh HD
Kích thước :
Dạng thiết kế ATX 12 inch x 9.1 inch ( 30.5 cm x 23.1 cm )
Bảo hành :
36 tháng
Hãng sản xuất :
ASUS
Mô tả tính năng

ASUS B250 Mining Expert là bo mạch chủ khai thác cryptocurrency đầu tiên trên thế giới trang bị 19 khe cắm PCI Express® (PCIe®). Với 18 khe cắm PCIe x1 và một khe cắm PCIe x16, cùng với ba đầu cắm nguồn ATX12V phân vùng, B250 Mining Expert cho phép bạn chạy song song lên đến 19* GPU NVIDIA hoặc AMD để tối đa hóa tốc độ megahash của bạn!  B250 Mining Expert đã được thiết kế để đáp ứng hoàn toàn nhu cầu điện năng của các GPU, một cách tinh khiết và hiệu quả. 19 khe cắm PCIe được nhóm thành ba vùng riêng biệt, mỗi vùng được cấp nguồn riêng từ một đầu cắm nguồn ATX12V 24 chân chuyên biệt — từ đó giúp giảm đi dây phức tạp và đảm bảo nguồn điện dồi dào cho tất cả các khe cắm PCIe.

Điện năng ổn định, tạp nhiễu thấp là một lợi ích nghiêm túc đối với việc khai thác tiền điện tử diễn ra 24/7. Đó chính là lý do chúng tôi trang bị 19 tụ điện lọc nhiễu cho B250 Mining Expert. Những linh kiện chất lượng cao này sẽ ổn định điện áp và giảm nhiễu tần số cao để các GPU của bạn luôn nhận được nguồn điện chất lượng tốt để vận hành tin cậy. B250 Mining Expert trang bị các công cụ thông minh tích hợp để hiển thị trạng thái của từng và mọi card đồ họa ngay khi bạn bật nguồn. Khi bật nguồn, màn hình Tự kiểm tra (POST) xuất hiện, bạn sẽ thấy biểu diễn đồ họa về trạng thái của từng khe cắm — nhờ đó bạn sẽ ngay lập tức phát hiện được vấn đề hoặc công việc khai thác cryptocurrency của bạn đang diễn ra tốt hay không.

Khác với bo mạch của một số đối thủ cạnh tranh, B250 Mining Expert hỗ trợ một Chế độ khai thác cryptocurrency đặc biệt được kích hoạt mặc định, giúp loại bỏ mọi phiền phức từ việc phải thay đổi ở cấp độ BIOS để tối đa hóa hiệu năng khai thác cryptocurrency. khai thác cryptocurrency đặt tốc độ PCI Express ở PCIe 1.0 và vô hiệu Compatibility Support Module (Mô-đun Hỗ trợ Tương thích) để bạn nhận được độ ổn định và độ tương thích tốt nhất ngay từ nguồn. B250 Mining Expert được trang bị Intel Gigabit Ethernet cho lưu lượng cao nhất và giảm thiểu lãng phí tài nguyên CPU, đảm bảo hiệu năng tối ưu từ hệ thống khai thác cryptocurrency của bạn. LANGuard độc quyền của ASUS đưa vào sử dụng cả công nghệ ghép tín hiệu tiên tiến và các tụ điện cao cấp được cắm trên bề mặt giúp cải thiện lưu lượng — bảo vệ chống sét và tĩnh điện cho B250 Mining Expert.
