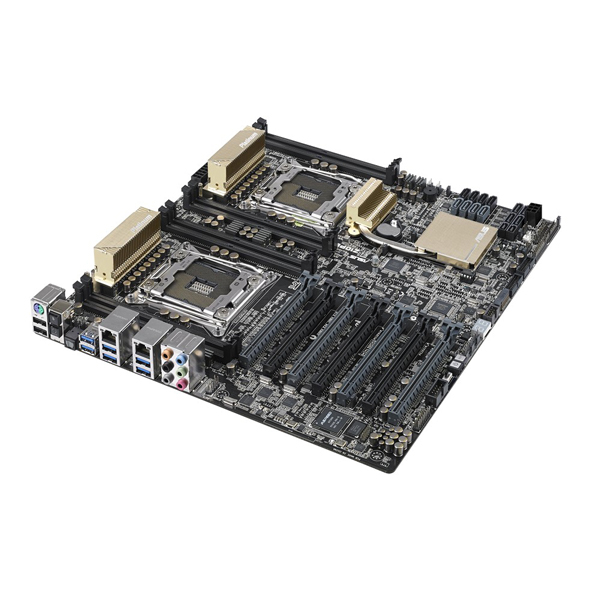

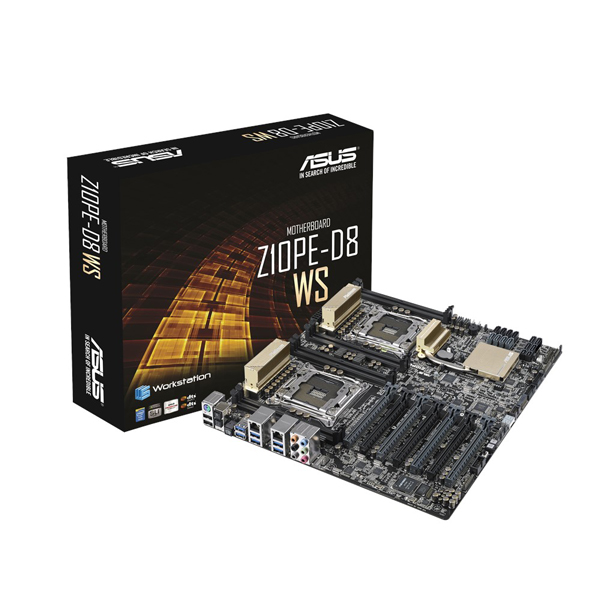

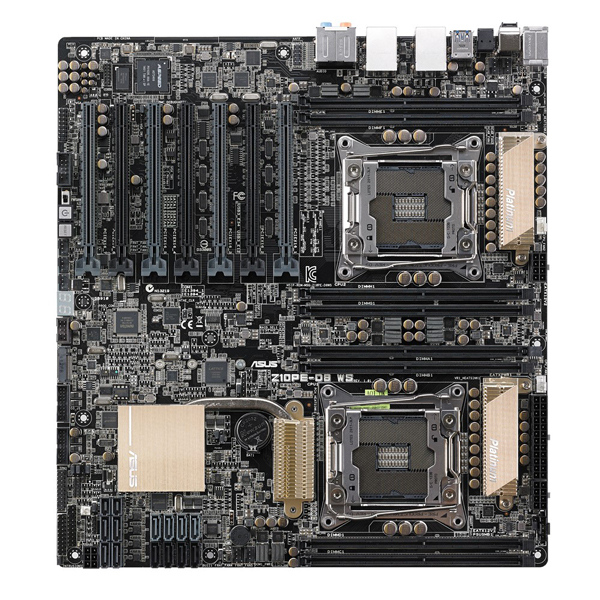

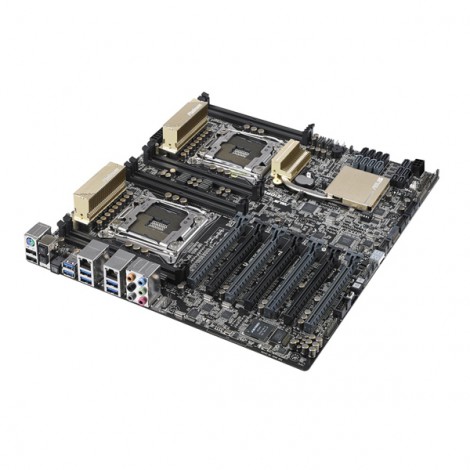

Mainboard Server ASUS Z10PE-D8WS

Build in Intel® Socket 2011-3: Square type (80x80mm; The maximum length of the heatsink screw thread is 3.7mm.) Processors Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product family Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family

8 x DIMM, Max. 512GB, DDR4 1866*/2400/2133/1600/1333 MHz RDIMM, LR-DIMM Memory Quad Channel Memory Architecture

8 x DIMM, Max. 512GB, DDR4 1866*/2400/2133/1600/1333 MHz RDIMM, LR-DIMM Memory Quad Channel Memory Architecture

Intel® C612 PCH

Intel® C612 chipset : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, ) Intel® C612 chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board) ASMedia® USB 3.1 Gen 1 controller : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board)

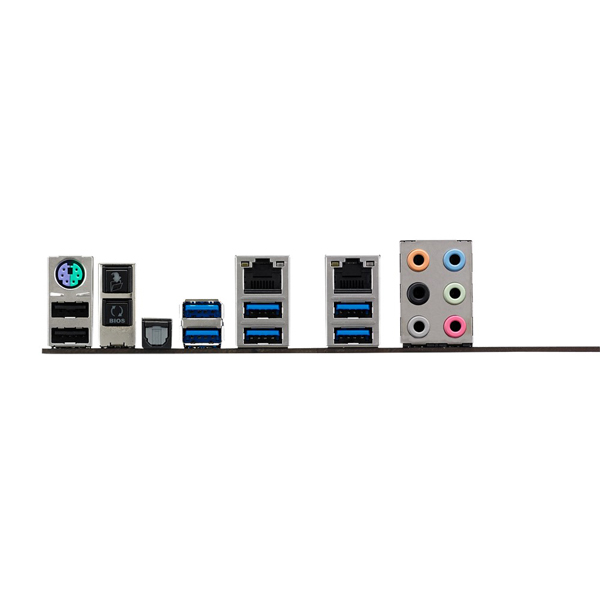

1 x PS/2 keyboard/mouse combo port(s) 2 x LAN (RJ45) port(s) 6 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 *6 1 x Optical S/PDIF out 1 x USB BIOS Flashback® Button(s) 1 x Q-Code Logger button 1 x 8-channel Audio I/O

1 x AAFP connector 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 1 x TPM connector(s) 1 x COM port(s) connector(s) 8 x SATA 6Gb/s connector(s) 2 x CPU Fan connector(s) (2 x 4 -pin) 7 x Chassis Fan connector(s) (7 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x RAID key header(s) 1 x VGA connector(s) 1 x AUX panel header(s) 1 x SMBus header(s) 1 x System panel(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Dr.Power switch(es) 1 x Serial Port header 1 x ASMB8-iKVM connector 1 x 6-pin EATX 12V_3 Power connector

Intel® I210-AT, 2 x Gigabit LAN Controller(s)

Realtek® ALC1150 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in) Audio Feature : - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port(s) at back panel - BD Audio Layer Content Protection - Absolute Pitch 192khz/24bit true BD lossless sound

EEB Form Factor 12 inch x 13 inch ( 30.5 cm x 33.02 cm )

36 tháng
