Mã Sản phẩm: tnm1431
| Mục | Mô Tả Chi Tiết |
|---|---|
| CPU | Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package |
| Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16)/2 x PCI Express x1 slots/3 x PCI slots |
| Chipset | Intel® H310 Express Chipset |
| Giao tiếp | 4 x USB 3.1 Gen 1 ports / 6 x USB 2.0/1.1 ports |
| Kết nối mạng LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Âm thanh | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| Bộ nhớ tiêu chuẩn | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory/ Support for DDR4 2666/2400/2133 MHz memory modules |

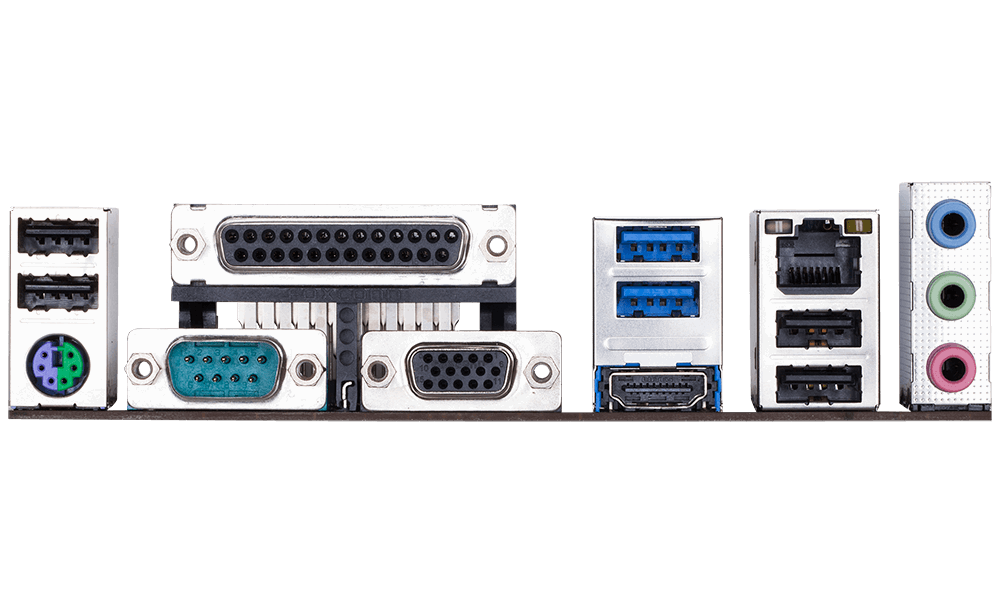

| Cổng I/O phía sau | 1 x PS/2 keyboard/mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 1 x HDMI ports 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Cổng I/O ở trong | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
| Loại Ram | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
| Kích thước | ATX Form Factor; 30.5cm x 20cm |
| Bảo hành | 36 tháng |
1,029,000đ
1,730,000đ
