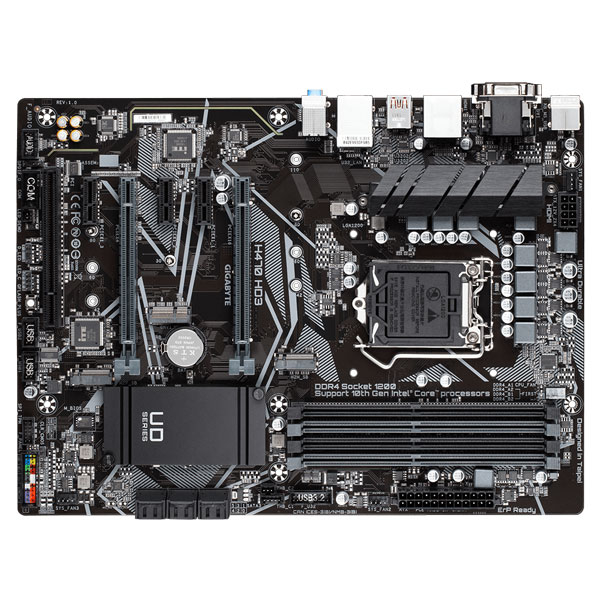

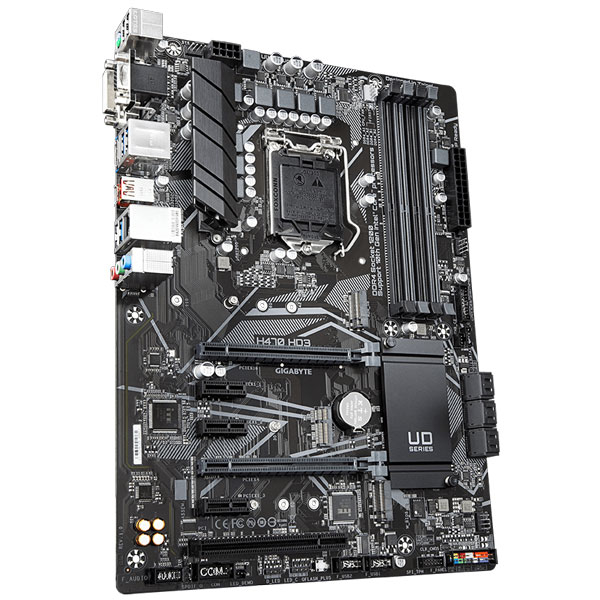

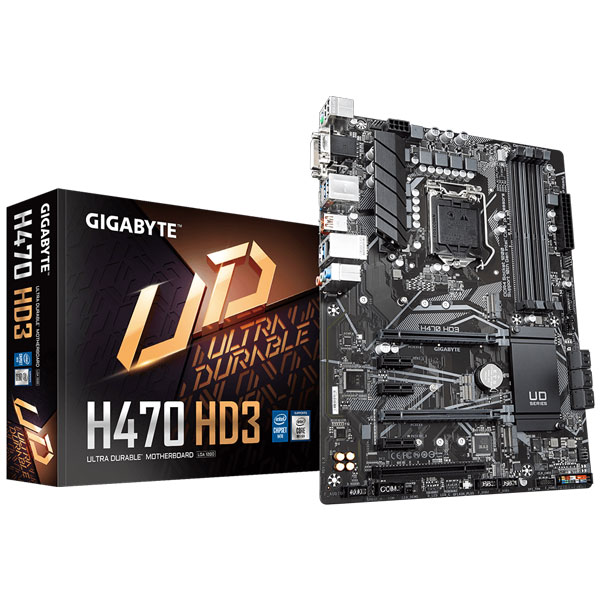

Mainboard GIGABYTE H470 HD3

  • : tnm4847
  • Giá bán : liên hệ
  • Giao tiếp: Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Chipset: Intel® H470 Express Chipset
  • Socket: 1200
Thông số kỹ thuật
CPU :
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
RAM :
Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Chipset :
Intel® H470 Express Chipset
Socket :
1200
Khe cắm mở rộng :
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Giao tiếp :
Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Cổng I/O phía sau :

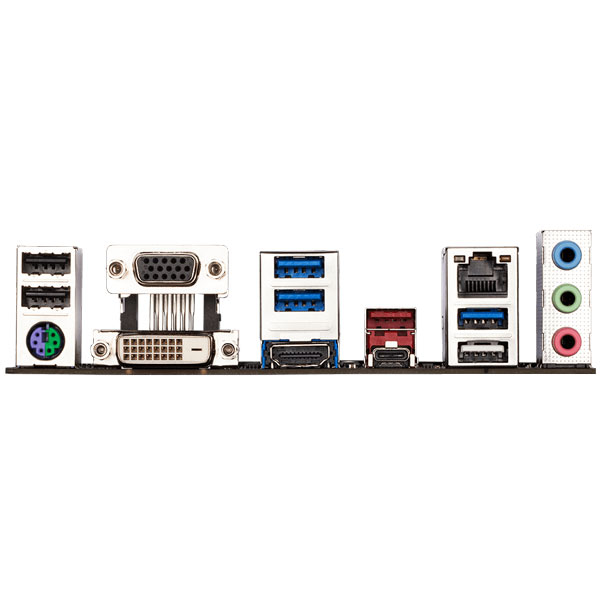

1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Cổng I/O ở trong :
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Kết nối mạng LAN :
Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Âm thanh :
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out
Hệ điều hành hỗ trợ :
Support for Windows 10 64-bit
Kích thước :
ATX Form Factor; 30.5cm x 22.5cm
Bảo hành :
36 tháng
Mô tả tính năng

Mainboard GIGABYTE H470 HD3 hỗ trợ Bộ xử lý dòng Intel ® Core ™ thế hệ thứ 10, Với hai đầu nối NVMe PCIe Gen3 x4 M.2 trên bo mạch chủ, Bo mạch chủ GIGABYTE mang đến cho người dùng kết nối PCI-Express cho các thiết bị SSD. Cung cấp tốc độ truyền dữ liệu lên tới 32 Gb / s trên mỗi đầu nối, M.2 kép cung cấp một giải pháp lưu trữ lý tưởng vì nó cũng hỗ trợ các chế độ RAID.

Cấu hình đa đồ họa cung cấp hiệu suất đồ họa tốt hơn cho những người đam mê chơi game, những người đòi hỏi tốc độ khung hình cao nhất mà không ảnh hưởng đến độ phân giải. Intel ® GbE LAN có cFosSpeed, một ứng dụng quản lý lưu lượng mạng giúp cải thiện độ trễ mạng và duy trì thời gian ping thấp để mang lại khả năng đáp ứng tốt hơn
