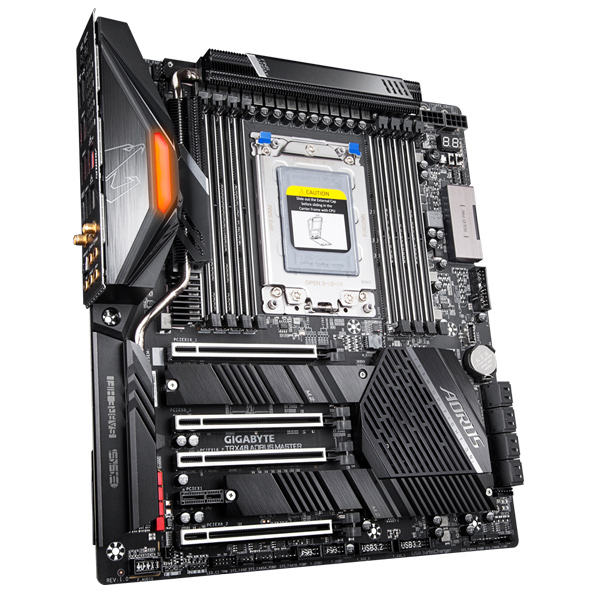

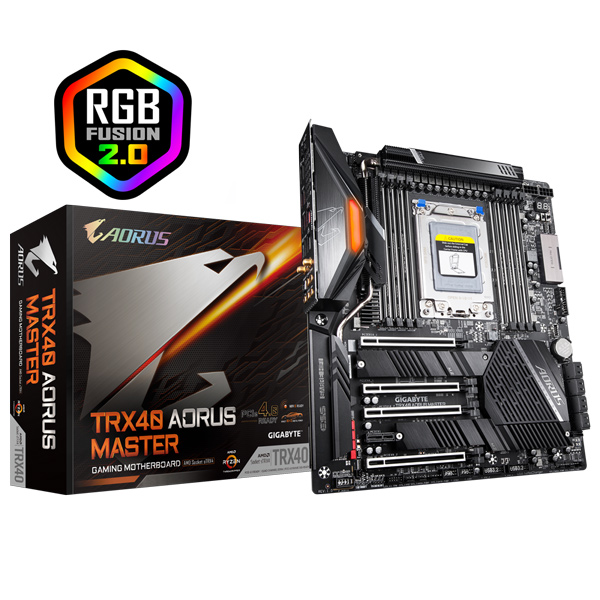

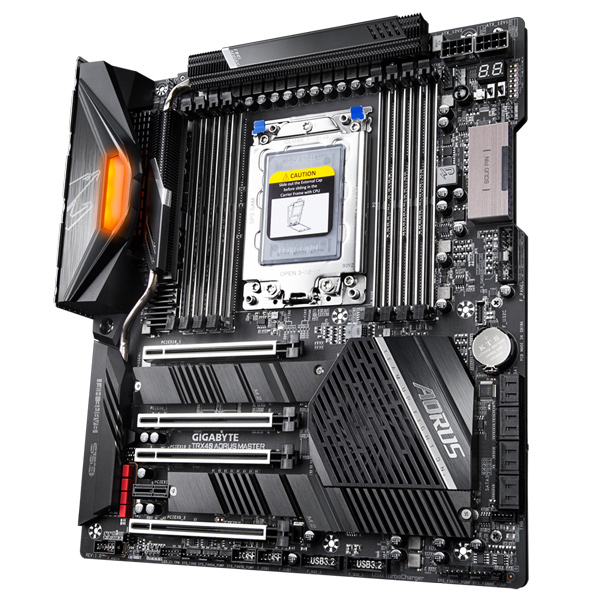

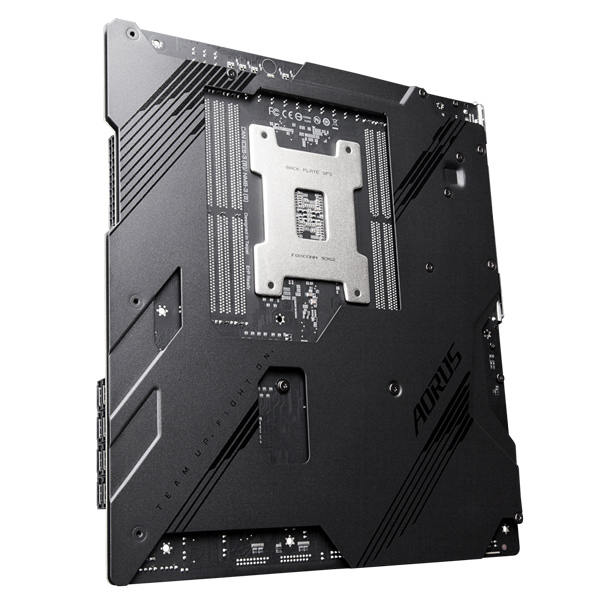

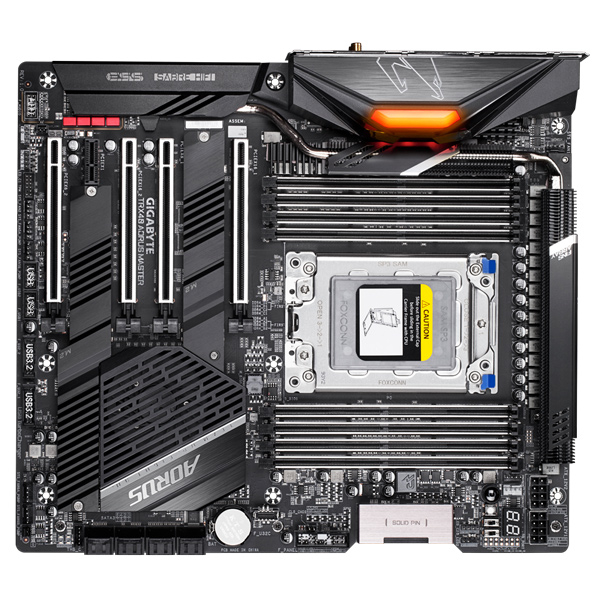

Mainboard Gigabyte TRX40 AORUS MASTER

8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory Quad Channel memory architecture Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

AMD TRX40

sTRX4

Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.0

1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (5GLAN) 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN)

1 x Realtek® ALC4050H codec+1 x Realtek® ALC1220-VB codec (Rear audio) 1 x Realtek® ALC4050H codec+1 x ESS SABRE9218 DAC chips (Front audio) Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 4.0 standard.)

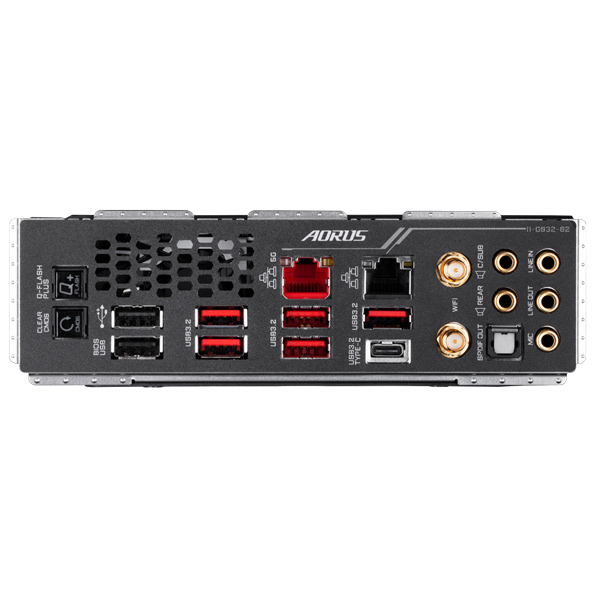

Integrated in the CPU: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Integrated in the Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Support for Windows 10 64-bit

E-ATX Form Factor; 30.5cm x 26.9cm

36 tháng
