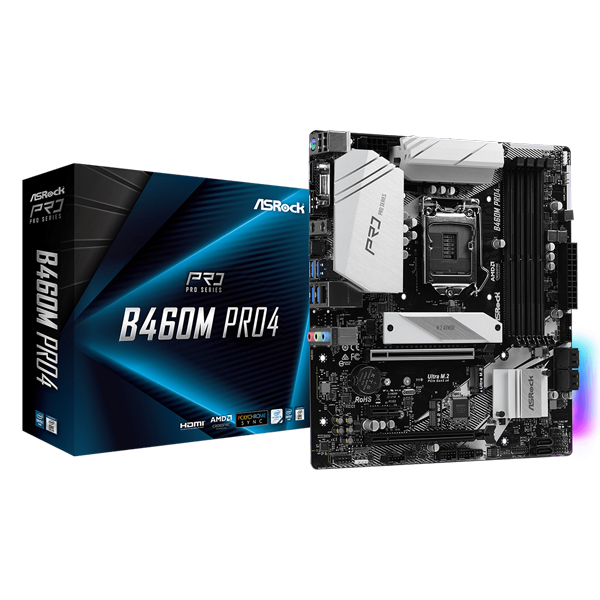

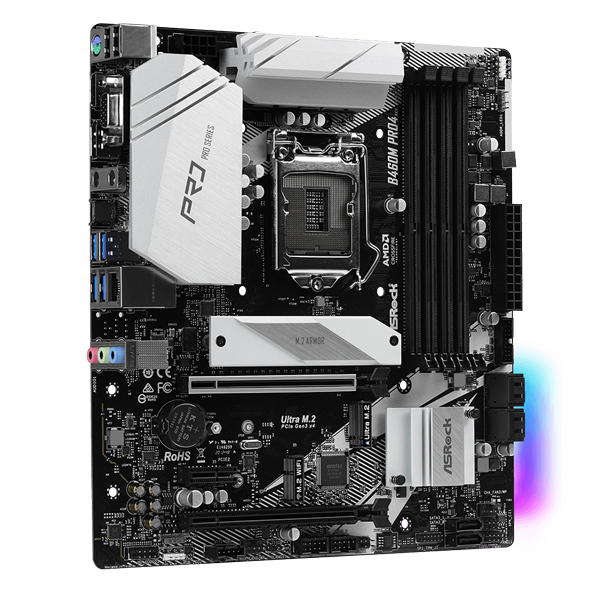

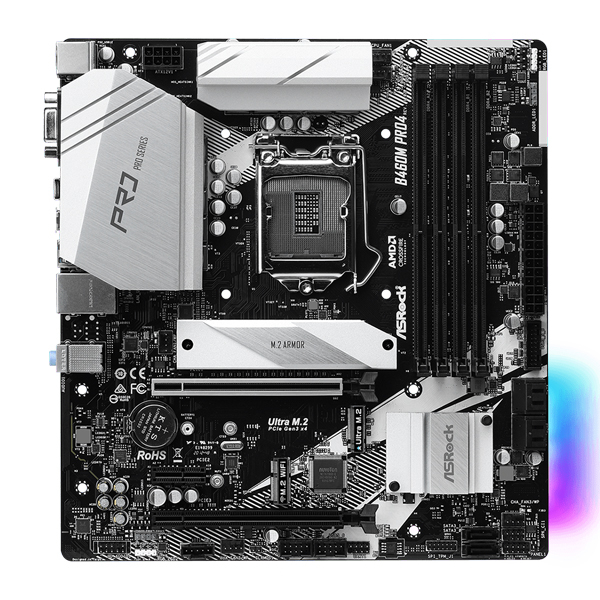

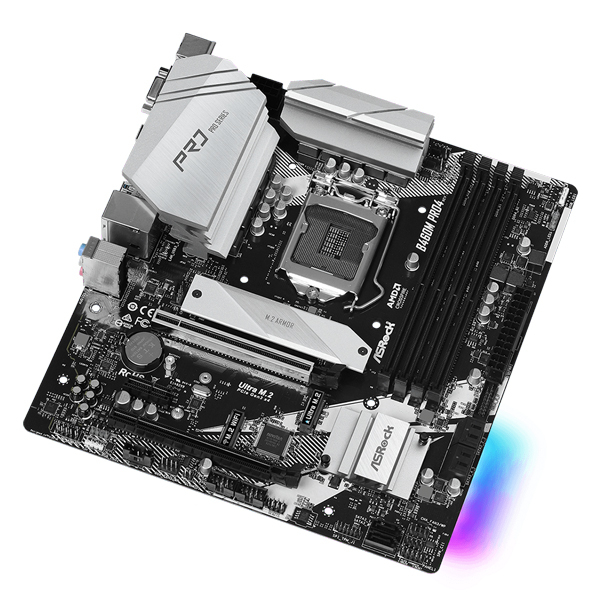

Mainboard Asrock B460M Pro4

  • : tnm5405
  • Ngừng kinh doanh
  • Chipset: Intel® B460
  • CPU hỗ trợ: Supports 10th Gen Intel® Core™ Processors (Socket 1200) - Digi Power design - 9 Power Phase design - Supports Intel® Turbo Boost Max 3.0 Technology
  • Socket: 1200
Thông số kỹ thuật
Chíp xử lý :
Supports 10th Gen Intel® Core™ Processors (Socket 1200) - Digi Power design - 9 Power Phase design - Supports Intel® Turbo Boost Max 3.0 Technology
Bộ nhớ Ram :
Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB** - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots *Please refer to Memory Support List on ASRock's website for more information. Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Chipset :
Intel® B460
Socket :
1200
Khe cắm mở rộng :
2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)) - 1 x PCI Express 3.0 x1 Slot - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

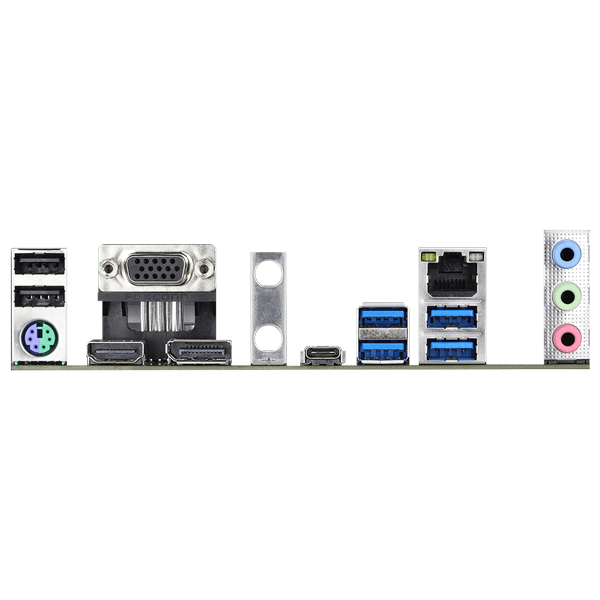

Cổng I/O phía sau :
1 x Antenna Bracket - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Cổng I/O ở trong :
1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header,1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Kết nối mạng LAN :
Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Phụ kiện kèm theo :
Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket
Âm thanh :
7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Nahimic Audio
Hệ điều hành hỗ trợ :
Microsoft® Windows® 10 64-bit
Kích thước :
Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm - Solid Capacitor design
Bảo hành :
36 tháng
Hãng sản xuất :
Asrock
Mô tả tính năng

So với cuộn cảm truyền thống, cuộn cảm nguồn 50A cao cấp của ASRock làm cho dòng điện bão hòa tốt hơn đến ba lần, do đó cung cấp điện áp Vcore nâng cao và cải thiện cho bo mạch chủ.

Cho dù bạn đang sử dụng tai nghe, loa ngoài hay loa trong, qua USB, Wi-Fi, đầu ra analog hoặc thậm chí HDMI, Nahimic Audio đều mang đến cho bạn trải nghiệm nghe hấp dẫn nhất, sống động và giàu chi tiết.

Bo mạch chủ ASRock mang lại hiệu suất tuyệt vời và tính thẩm mỹ cao để điều khiển cách chiếu sáng đầy màu sắc của riêng bạn

Intel ® LAN cung cấp hiệu suất thông lượng tốt nhất, sử dụng CPU thấp hơn, tăng cường độ ổn định và có thể mang lại trải nghiệm mạng tối ưu cho người dùng

Khe cắm thép PCI-E tiên tiến được trang bị lớp vỏ chắc chắn giúp ngăn chặn bất kỳ sự nhiễu tín hiệu nào với card đồ họa. Nó cũng đảm bảo các card đồ họa nặng được lắp đặt tốt trong khe cắm PCI-E một cách an toàn.
