Mã Sản phẩm: tnm4829

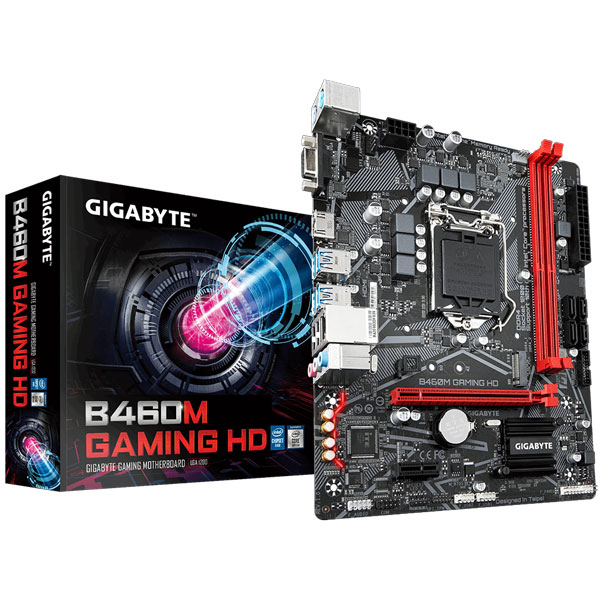

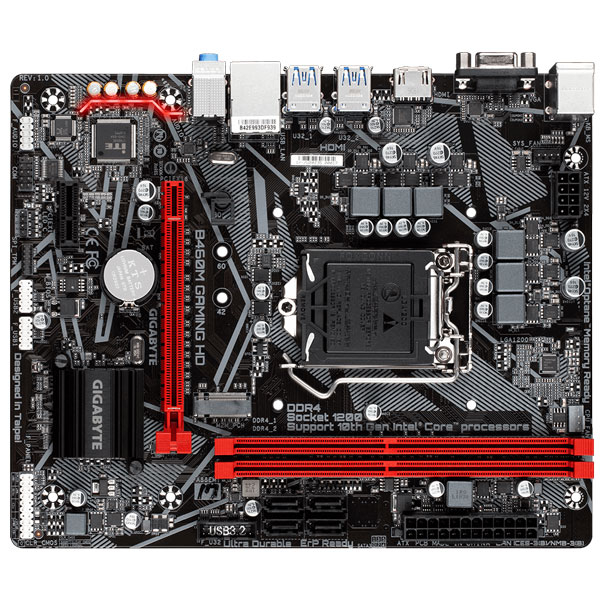

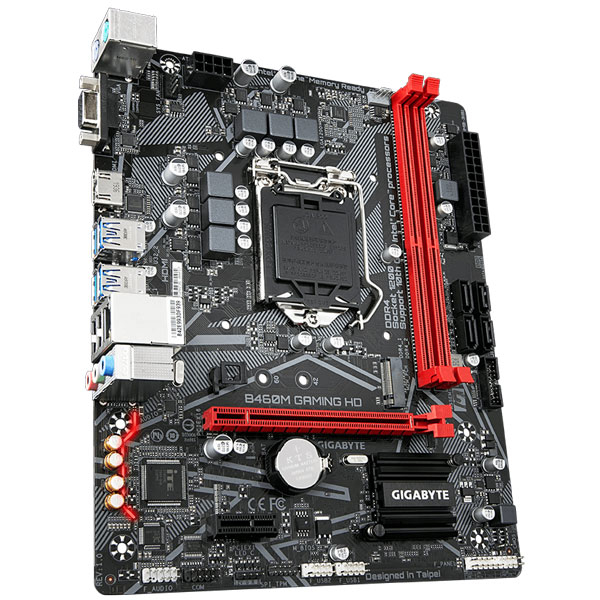

Mainboard GIGABYTE B460M GAMING HD Hỗ trợ Bộ xử lý Intel ® Core ™ thế hệ thứ 10 Hỗ trợ Bộ xử lý Intel ® Core ™ thế hệ thứ 10
Realtek 8118 LAN là chip mạng thân thiện và hiệu suất cao dành cho người chơi trò chơi với phân bổ băng thông tự động để đảm bảo mức ưu tiên mạng cao nhất của trò chơi hoặc ứng dụng. Nó có thể cung cấp cho người dùng các tính năng toàn diện nhất và trải nghiệm Internet nhanh nhất và mượt mà nhất.
| Mục | Mô Tả Chi Tiết |
|---|---|
| CPU | Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| RAM | Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 3.0 standard.) |
| Chipset | Intel® B460 Express Chipset |
| Giao tiếp | 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Kích thước | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Kết nối mạng LAN | Realtek® GbE LAN chip (1000/100 Mbit) |
| Âm thanh | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. |
| Hệ điều hành hỗ trợ | Support for Windows 10 64-bit |
| Socket | 1200 |

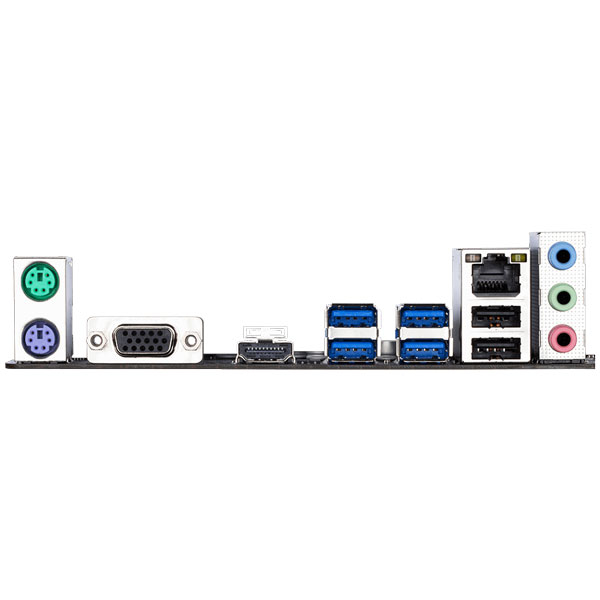

| Cổng I/O phía sau | 1 x PS/2 mouse port 1 x PS/2 keyboard port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Cổng I/O ở trong | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Bảo hành | 36 tháng |
